Discrete boundary operator composed of multiple blocks stored separately. More...

#include </home/wojtek/Projects/BEM/bempp-sven/bempp/lib/assembly/discrete_blocked_boundary_operator.hpp>

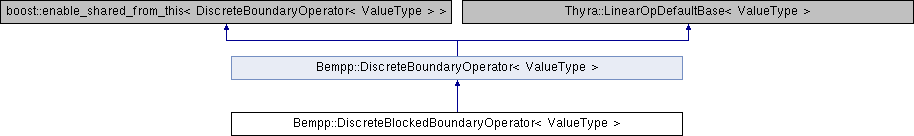

Inheritance diagram for Bempp::DiscreteBlockedBoundaryOperator< ValueType >:

Public Types
typedef DiscreteBoundaryOperator < ValueType >	Base

Public Member Functions
	DiscreteBlockedBoundaryOperator (const Fiber::_2dArray< shared_ptr< const Base > > &blocks, const std::vector< size_t > &rowCounts, const std::vector< size_t > &columnCounts)
	Constructor. More...

virtual unsigned int	rowCount () const
	Number of rows of the operator.

virtual unsigned int	columnCount () const
	Number of columns of the operator.

virtual shared_ptr< const DiscreteBoundaryOperator < ValueType > >	getComponent (int row, int col) const
	return the block component at position (i,j) in the block operator matrix.

virtual void	addBlock (const std::vector< int > &rows, const std::vector< int > &cols, const ValueType alpha, arma::Mat< ValueType > &block) const
	Add a subblock of this operator to a matrix. More...

shared_ptr< const DiscreteBlockedBoundaryOperator < ValueType > >	asDiscreteAcaBlockedBoundaryOperator (double eps=-1, int maximumRank=-1) const
	Return a new DiscreteBlockedBoundaryOperator, in which every component is castable to a DiscreteAcaBoundaryOperator. More...

virtual shared_ptr< const DiscreteBoundaryOperator < ValueType > >	asDiscreteAcaBoundaryOperator (double eps=-1, int maximumRank=-1, bool interleave=false) const
	Return a representation that can be cast to a DiscreteAcaBoundaryOperator. More...

virtual Teuchos::RCP< const Thyra::VectorSpaceBase < ValueType > >	domain () const

virtual Teuchos::RCP< const Thyra::VectorSpaceBase < ValueType > >	range () const

Public Member Functions inherited from Bempp::DiscreteBoundaryOperator< ValueType >
virtual	~DiscreteBoundaryOperator ()
	Destructor.

void	apply (const Thyra::EOpTransp M_trans, const Thyra::MultiVectorBase< ValueType > &x_in, const Thyra::Ptr< Thyra::MultiVectorBase< ValueType > > &y_inout, const ValueType alpha, const ValueType beta) const
	Apply the linear operator to a multivector. More...

void	apply (const TranspositionMode trans, const arma::Mat< ValueType > &x_in, arma::Mat< ValueType > &y_inout, const ValueType alpha, const ValueType beta) const
	Apply the operator to a vector. More...

virtual void	dump () const
	Write a textual representation of the operator to standard output. More...

virtual arma::Mat< ValueType >	asMatrix () const
	Matrix representation of the operator. More...

Protected Member Functions
virtual bool	opSupportedImpl (Thyra::EOpTransp M_trans) const

Protected Member Functions inherited from Bempp::DiscreteBoundaryOperator< ValueType >
virtual void	applyImpl (const Thyra::EOpTransp M_trans, const Thyra::MultiVectorBase< ValueType > &X_in, const Teuchos::Ptr< Thyra::MultiVectorBase< ValueType > > &Y_inout, const ValueType alpha, const ValueType beta) const

Private Member Functions
virtual void	applyBuiltInImpl (const TranspositionMode trans, const arma::Col< ValueType > &x_in, arma::Col< ValueType > &y_inout, const ValueType alpha, const ValueType beta) const

void	mergeHMatrices (unsigned currentLevel, const std::vector< Fiber::_2dArray< unsigned > > &rowSonSizes, const std::vector< Fiber::_2dArray< unsigned > > &colSonSizes, const Fiber::_2dArray< const blcluster * > clusters, const Fiber::_2dArray< size_t > indexOffsets, blcluster *result) const

Additional Inherited Members
Related Functions inherited from Bempp::DiscreteBoundaryOperator< ValueType >
template<typename ValueType >
shared_ptr< const DiscreteBoundaryOperator < ValueType > >	operator+ (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op)
	Unary plus: return a copy of the argument.

template<typename ValueType >
shared_ptr< const DiscreteBoundaryOperator < ValueType > >	operator- (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op)
	Return a shared pointer to a DiscreteBoundaryOperator representing the operand multiplied by -1. More...

template<typename ValueType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	operator+ (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op1, const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op2)
	Return a shared pointer to a DiscreteBoundaryOperator representing the sum of the operands. More...

template<typename ValueType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	operator- (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op1, const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op2)
	Return a shared pointer to a DiscreteBoundaryOperator representing the difference of the operands. More...

template<typename ValueType , typename ScalarType >
boost::enable_if< typename boost::mpl::has_key < boost::mpl::set< float, double, std::complex< float > , std::complex< double > >, ScalarType >, shared_ptr < DiscreteBoundaryOperator < ValueType > > >::type	operator* (ScalarType scalar, const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op)
	Return a shared pointer to a DiscreteBoundaryOperator representing the operator `*op` multiplied by `scalar`. More...

template<typename ValueType , typename ScalarType >
boost::enable_if< typename boost::mpl::has_key < boost::mpl::set< float, double, std::complex< float > , std::complex< double > >, ScalarType >, shared_ptr < DiscreteBoundaryOperator < ValueType > > >::type	operator* (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op, ScalarType scalar)
	Return a shared pointer to a DiscreteBoundaryOperator representing the operator `*op` multiplied by `scalar`. More...

template<typename ValueType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	operator* (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op1, const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op2)
	Return a shared pointer to a DiscreteBoundaryOperator representing a composition of operators, `(op1) (*op2)`. More...

template<typename ValueType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	mul (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op1, const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op2)
	Return a shared pointer to a DiscreteBoundaryOperator representing a composition of operators, `(op1) (*op2)`. More...

template<typename ValueType , typename ScalarType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	operator/ (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op, ScalarType scalar)
	Return a shared pointer to a DiscreteBoundaryOperator representing the operator `*op` divided by `scalar`. More...

template<typename ValueType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	transpose (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op)
	Return a shared pointer to a DiscreteBoundaryOperator representing the transposed operator `*op`. More...

template<typename ValueType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	conjugate (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op)
	Return a shared pointer to a DiscreteBoundaryOperator representing the conjugated operator `*op`. More...

template<typename ValueType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	conjugateTranspose (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op)
	Return a shared pointer to a DiscreteBoundaryOperator representing the conjugate-transposed operator `*op`. More...

template<typename ValueType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	transpose (TranspositionMode trans, const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op)
	Return a shared pointer to a DiscreteBoundaryOperator representing the transposed and/or conjugated (depending on the value of the argument `trans`) operator `*op`. More...

template<typename RealType >
shared_ptr < DiscreteBoundaryOperator < std::complex< RealType > > >	complexify (const shared_ptr< const DiscreteBoundaryOperator< RealType > > &op)
	Return a shared pointer to a DiscreteBoundaryOperator representing the "complexified" operator `*op`. More...

Detailed Description

template<typename ValueType>
class Bempp::DiscreteBlockedBoundaryOperator< ValueType >

Discrete boundary operator composed of multiple blocks stored separately.

This class represents a linear operator whose matrix

$L = \begin{bmatrix} L_{11} & L_{12} & \dots & L_{1n} \\ L_{21} & L_{22} & \dots & L_{2n} \\ \vdots & \vdots & \ddots & \vdots \\ L_{m1} & L_{m2} & \dots & L_{mn} \end{bmatrix}$

is composed of $m \times n$ discrete boundary operators $L_{ij}$ .

Constructor & Destructor Documentation

template<typename ValueType >

Bempp::DiscreteBlockedBoundaryOperator< ValueType >::DiscreteBlockedBoundaryOperator	(	const Fiber::_2dArray< shared_ptr< const Base > > &	blocks,
		const std::vector< size_t > &	rowCounts,
		const std::vector< size_t > &	columnCounts
	)

Constructor.

Parameters

[in]	blocks	2D array of shared pointers to the discrete boundary operators $L_{ij}$ making up the newly constructed blocked operator. A null shared pointer is equivalent to a discrete boundary operator with zero matrix.
[in]	rowCounts	Vector whose ith element is the number of rows of the matrix of each operator in ith row of the array `blocks`.
[in]	columnCounts	Vector whose ith element is the number of columns of the matrix of each operator in ith column of the array `blocks`.

References Bempp::toString().

Member Function Documentation

template<typename ValueType >

void Bempp::DiscreteBlockedBoundaryOperator< ValueType >::addBlock	(	const std::vector< int > &	rows,
		const std::vector< int > &	cols,
		const ValueType	alpha,
		arma::Mat< ValueType > &	block
	)		const

virtual

Add a subblock of this operator to a matrix.

Perform the operation block += alpha * L[rows, cols], where block is a matrix, alpha a scalar and L[rows, cols] a subblock of this discrete linear operator.

Parameters

[in]	rows	Vector of row indices.
[in]	cols	Vector of column indices.
[in]	alpha	Multiplier.
[in,out]	block	On entry, matrix of size (`rows.size()`, `cols.size()`). On exit, each element (i, j) of this matrix will be augmented by the element (`rows[i]`, `cols[j]`) of this operator, multiplied by `alpha`.

Row and column indices may be unsorted.

This method need not be supported by all subclasses. It is mainly intended for internal use during weak-form assembly.

Implements Bempp::DiscreteBoundaryOperator< ValueType >.

template<typename ValueType >

shared_ptr< const DiscreteBlockedBoundaryOperator< ValueType > > Bempp::DiscreteBlockedBoundaryOperator< ValueType >::asDiscreteAcaBlockedBoundaryOperator	(	double	eps = `-1`,
		int	maximumRank = `-1`
	)		const

Return a new DiscreteBlockedBoundaryOperator, in which every component is castable to a DiscreteAcaBoundaryOperator.

This routine calls the DiscreteBoundaryOperator::asDiscreteAcaBoundaryOperator() function for each block component, which may throw a std::bad_cast exception if conversion of a block fails.

Parameters

[in]	eps	Accuracy tolerance for H-Matrix addition.
[in]	maximumRank	Maximum rank of blocks to be considered low rank in the case of H-Matrix addition.

Returns: A pointer to a DiscreteBlockedBoundaryOperator object, where every component is castable to DiscreteAcaBoundaryOperator.

Note: This function throws an exception if BEM++ has been compiled without AHMED.

template<typename ValueType >

shared_ptr< const DiscreteBoundaryOperator< ValueType > > Bempp::DiscreteBlockedBoundaryOperator< ValueType >::asDiscreteAcaBoundaryOperator	(	double	eps = `-1`,
		int	maximumRank = `-1`,
		bool	interleave = `false`
	)		const

virtual

Return a representation that can be cast to a DiscreteAcaBoundaryOperator.

The conversion only succeeds if all members of the DiscreteBoundaryOperator itself can be cast to a DiscreteAcaBoundaryOperator or if it is a linear combination of DiscreteOperators that can be cast to type DiscreteAcaBoundaryOperator. Operator compositions are not yet supported by this function.

Parameters

[in]	eps	The $\epsilon$ parameter controlling the accuracy of H-matrix addition in case this operation is needed to construct the H-matrix representation of the operator. If `eps` is negative (default), it is set to the smaller of the values of $\epsilon$ specified during the creation of the two H-matrices to be added.
[in]	maximumRank	Maximum rank of blocks to be considered low rank when adding two H-Matrices. If `maximumRank` is negative, it is set to the larger of the maximum ranks specified during the creation of the two H-matrices to be added.

Returns: A pointer to a DiscreteBoundaryOperator object castable to DiscreteAcaBoundaryOperator.

Note: This function throws an exception if BEM++ has been compiled without AHMED.

Reimplemented from Bempp::DiscreteBoundaryOperator< ValueType >.

The documentation for this class was generated from the following files:

/home/wojtek/Projects/BEM/bempp-sven/bempp/lib/assembly/discrete_blocked_boundary_operator.hpp
/home/wojtek/Projects/BEM/bempp-sven/bempp/lib/assembly/discrete_blocked_boundary_operator.cpp
