Discrete boundary operator. More...

#include </home/wojtek/Projects/BEM/bempp-sven/bempp/lib/assembly/discrete_boundary_operator.hpp>

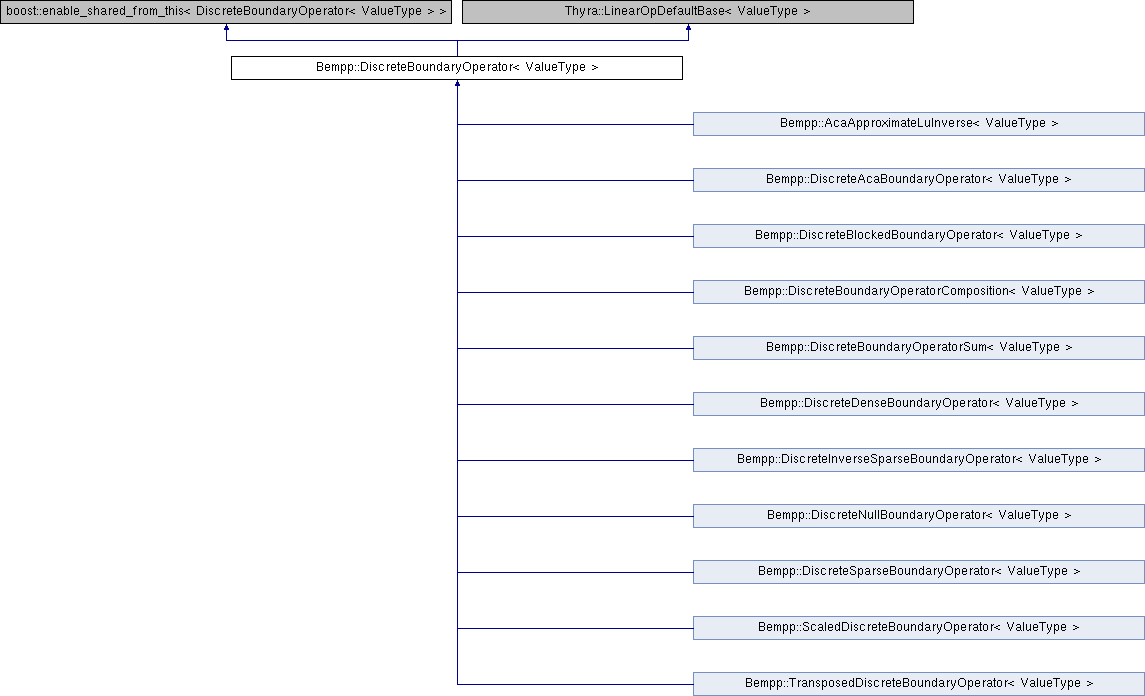

Inheritance diagram for Bempp::DiscreteBoundaryOperator< ValueType >:

Public Member Functions
virtual	~DiscreteBoundaryOperator ()
	Destructor.

void	apply (const Thyra::EOpTransp M_trans, const Thyra::MultiVectorBase< ValueType > &x_in, const Thyra::Ptr< Thyra::MultiVectorBase< ValueType > > &y_inout, const ValueType alpha, const ValueType beta) const
	Apply the linear operator to a multivector. More...

void	apply (const TranspositionMode trans, const arma::Mat< ValueType > &x_in, arma::Mat< ValueType > &y_inout, const ValueType alpha, const ValueType beta) const
	Apply the operator to a vector. More...

virtual shared_ptr< const DiscreteBoundaryOperator >	asDiscreteAcaBoundaryOperator (double eps=-1, int maximumRank=-1, bool interleave=false) const
	Return a representation that can be cast to a DiscreteAcaBoundaryOperator. More...

virtual void	dump () const
	Write a textual representation of the operator to standard output. More...

virtual arma::Mat< ValueType >	asMatrix () const
	Matrix representation of the operator. More...

virtual unsigned int	rowCount () const =0
	Number of rows of the operator.

virtual unsigned int	columnCount () const =0
	Number of columns of the operator.

virtual void	addBlock (const std::vector< int > &rows, const std::vector< int > &cols, const ValueType alpha, arma::Mat< ValueType > &block) const =0
	Add a subblock of this operator to a matrix. More...

Protected Member Functions
virtual void	applyImpl (const Thyra::EOpTransp M_trans, const Thyra::MultiVectorBase< ValueType > &X_in, const Teuchos::Ptr< Thyra::MultiVectorBase< ValueType > > &Y_inout, const ValueType alpha, const ValueType beta) const

Private Member Functions
virtual void	applyBuiltInImpl (const TranspositionMode trans, const arma::Col< ValueType > &x_in, arma::Col< ValueType > &y_inout, const ValueType alpha, const ValueType beta) const =0

Related Functions
(Note that these are not member functions.)
template<typename ValueType >
shared_ptr< const DiscreteBoundaryOperator < ValueType > >	operator+ (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op)
	Unary plus: return a copy of the argument.

template<typename ValueType >
shared_ptr< const DiscreteBoundaryOperator < ValueType > >	operator- (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op)
	Return a shared pointer to a DiscreteBoundaryOperator representing the operand multiplied by -1. More...

template<typename ValueType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	operator+ (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op1, const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op2)
	Return a shared pointer to a DiscreteBoundaryOperator representing the sum of the operands. More...

template<typename ValueType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	operator- (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op1, const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op2)
	Return a shared pointer to a DiscreteBoundaryOperator representing the difference of the operands. More...

template<typename ValueType , typename ScalarType >
boost::enable_if< typename boost::mpl::has_key < boost::mpl::set< float, double, std::complex< float > , std::complex< double > >, ScalarType >, shared_ptr < DiscreteBoundaryOperator < ValueType > > >::type	operator* (ScalarType scalar, const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op)
	Return a shared pointer to a DiscreteBoundaryOperator representing the operator `*op` multiplied by `scalar`. More...

template<typename ValueType , typename ScalarType >
boost::enable_if< typename boost::mpl::has_key < boost::mpl::set< float, double, std::complex< float > , std::complex< double > >, ScalarType >, shared_ptr < DiscreteBoundaryOperator < ValueType > > >::type	operator* (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op, ScalarType scalar)
	Return a shared pointer to a DiscreteBoundaryOperator representing the operator `*op` multiplied by `scalar`. More...

template<typename ValueType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	operator* (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op1, const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op2)
	Return a shared pointer to a DiscreteBoundaryOperator representing a composition of operators, `(op1) (*op2)`. More...

template<typename ValueType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	mul (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op1, const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op2)
	Return a shared pointer to a DiscreteBoundaryOperator representing a composition of operators, `(op1) (*op2)`. More...

template<typename ValueType , typename ScalarType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	operator/ (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op, ScalarType scalar)
	Return a shared pointer to a DiscreteBoundaryOperator representing the operator `*op` divided by `scalar`. More...

template<typename ValueType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	transpose (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op)
	Return a shared pointer to a DiscreteBoundaryOperator representing the transposed operator `*op`. More...

template<typename ValueType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	conjugate (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op)
	Return a shared pointer to a DiscreteBoundaryOperator representing the conjugated operator `*op`. More...

template<typename ValueType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	conjugateTranspose (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op)
	Return a shared pointer to a DiscreteBoundaryOperator representing the conjugate-transposed operator `*op`. More...

template<typename ValueType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	transpose (TranspositionMode trans, const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op)
	Return a shared pointer to a DiscreteBoundaryOperator representing the transposed and/or conjugated (depending on the value of the argument `trans`) operator `*op`. More...

template<typename RealType >
shared_ptr < DiscreteBoundaryOperator < std::complex< RealType > > >	complexify (const shared_ptr< const DiscreteBoundaryOperator< RealType > > &op)
	Return a shared pointer to a DiscreteBoundaryOperator representing the "complexified" operator `*op`. More...

Detailed Description

template<typename ValueType>
class Bempp::DiscreteBoundaryOperator< ValueType >

Discrete boundary operator.

This class represents a discretised boundary operator, i.e. a matrix $\mathsf{L}$ with entries

$\mathsf{L}_{mn} \equiv \int_S \phi^*_m(x) \,[L\, \psi_n](x)\, \mathrm{d}S(x),$

where $L$ is a boundary operator, $\{\phi_m\}_{m=1}^{M}$ are the basis functions spanning a test space and defined on a surface $S$ , whereas $\{\psi_n\}_{n=1}^{N}$ are the basis functions of a trial space. The way the matrix is stored can be arbitrary. Concrete subclasses of this class implement specific storage methods.

If BEM++ is compiled with Trilinos, this class is derived from Thyra::LinearOpDefaultBase<ValueType> and hence inherits all non-private member function of this class; see Trilinos documentation for full documentation of these functions.

If Trilinos is not available during compilation, a simple fallback interface is provided.

Note: The lifetime of DiscreteBoundaryOperator objects must managed by shared pointers.

Template Parameters

ValueType Type used to represent entries of the operator matrix. It can take the following values: float, double, std::complex<float> and std::complex<double>.

Member Function Documentation

template<typename ValueType>

virtual void Bempp::DiscreteBoundaryOperator< ValueType >::addBlock	(	const std::vector< int > &	rows,
		const std::vector< int > &	cols,
		const ValueType	alpha,
		arma::Mat< ValueType > &	block
	)		const

pure virtual

Add a subblock of this operator to a matrix.

Perform the operation block += alpha * L[rows, cols], where block is a matrix, alpha a scalar and L[rows, cols] a subblock of this discrete linear operator.

Parameters

[in]	rows	Vector of row indices.
[in]	cols	Vector of column indices.
[in]	alpha	Multiplier.
[in,out]	block	On entry, matrix of size (`rows.size()`, `cols.size()`). On exit, each element (i, j) of this matrix will be augmented by the element (`rows[i]`, `cols[j]`) of this operator, multiplied by `alpha`.

Row and column indices may be unsorted.

This method need not be supported by all subclasses. It is mainly intended for internal use during weak-form assembly.

template<typename ValueType>

void Bempp::DiscreteBoundaryOperator< ValueType >::apply	(	const Thyra::EOpTransp	M_trans,
		const Thyra::MultiVectorBase< ValueType > &	x_in,
		const Thyra::Ptr< Thyra::MultiVectorBase< ValueType > > &	y_inout,
		const ValueType	alpha,
		const ValueType	beta
	)		const

Apply the linear operator to a multivector.

Set the elements of the multivector y_inout to

y_inout := alpha * trans(L) * x_in + beta * y_inout,

where L is the linear operator represented by this object.

Parameters

[in]	M_trans	Determines whether what is applied is the "bare" operator, its transpose, conjugate or conjugate transpose.
[in]	x_in	The right-hand-side multivector.
[in,out]	y_inout	The target multivector being transformed. When `beta == 0.0`, this multivector can have uninitialized elements.
[in]	alpha	Scalar multiplying this operator.
[in]	beta	The multiplier for the target multivector `y_inout`.

This overload of the apply() member function is only available if the library was compiled with Trilinos.

template<typename ValueType>

void Bempp::DiscreteBoundaryOperator< ValueType >::apply	(	const TranspositionMode	trans,
		const arma::Mat< ValueType > &	x_in,
		arma::Mat< ValueType > &	y_inout,
		const ValueType	alpha,
		const ValueType	beta
	)		const

Apply the operator to a vector.

Set the elements of the column vector y_inout to

y_inout := alpha * trans(L) * x_in + beta * y_inout,

where L is the linear operator represented by this object.

Parameters

[in]	trans	Determines whether what is applied is the "bare" operator, its transpose, conjugate or conjugate transpose.
[in]	x_in	The right-hand-side multivector.
[in,out]	y_inout	The target multivector being transformed. When `beta == 0.0`, this multivector can have uninitialized elements.
[in]	alpha	Scalar multiplying this operator.
[in]	beta	The multiplier for the target multivector `y_inout`.

This overload is always available, even if the library was compiled without Trilinos.

References Bempp::CONJUGATE_TRANSPOSE, and Bempp::TRANSPOSE.

template<typename ValueType >

shared_ptr< const DiscreteBoundaryOperator< ValueType > > Bempp::DiscreteBoundaryOperator< ValueType >::asDiscreteAcaBoundaryOperator	(	double	eps = `-1`,
		int	maximumRank = `-1`,
		bool	interleave = `false`
	)		const

virtual

Return a representation that can be cast to a DiscreteAcaBoundaryOperator.

The conversion only succeeds if all members of the DiscreteBoundaryOperator itself can be cast to a DiscreteAcaBoundaryOperator or if it is a linear combination of DiscreteOperators that can be cast to type DiscreteAcaBoundaryOperator. Operator compositions are not yet supported by this function.

Parameters

[in]	eps	The $\epsilon$ parameter controlling the accuracy of H-matrix addition in case this operation is needed to construct the H-matrix representation of the operator. If `eps` is negative (default), it is set to the smaller of the values of $\epsilon$ specified during the creation of the two H-matrices to be added.
[in]	maximumRank	Maximum rank of blocks to be considered low rank when adding two H-Matrices. If `maximumRank` is negative, it is set to the larger of the maximum ranks specified during the creation of the two H-matrices to be added.

Returns: A pointer to a DiscreteBoundaryOperator object castable to DiscreteAcaBoundaryOperator.

Note: This function throws an exception if BEM++ has been compiled without AHMED.

Reimplemented in Bempp::DiscreteAcaBoundaryOperator< ValueType >, Bempp::DiscreteBlockedBoundaryOperator< ValueType >, Bempp::DiscreteSparseBoundaryOperator< ValueType >, Bempp::DiscreteBoundaryOperatorSum< ValueType >, and Bempp::ScaledDiscreteBoundaryOperator< ValueType >.

template<typename ValueType >

arma::Mat< ValueType > Bempp::DiscreteBoundaryOperator< ValueType >::asMatrix ( ) const

virtual

Matrix representation of the operator.

The default implementation is slow and should be overridden where possible.

Reimplemented in Bempp::DiscreteAcaBoundaryOperator< ValueType >, Bempp::DiscreteSparseBoundaryOperator< ValueType >, Bempp::DiscreteBoundaryOperatorSum< ValueType >, Bempp::ScaledDiscreteBoundaryOperator< ValueType >, Bempp::ComplexifiedDiscreteBoundaryOperator< RealType >, Bempp::TransposedDiscreteBoundaryOperator< ValueType >, Bempp::DiscreteDenseBoundaryOperator< ValueType >, and Bempp::DiscreteNullBoundaryOperator< ValueType >.

References Bempp::NO_TRANSPOSE.

template<typename ValueType >

void Bempp::DiscreteBoundaryOperator< ValueType >::dump ( ) const

virtual

Write a textual representation of the operator to standard output.

The default implementation prints the matrix returned by asMatrix().

Reimplemented in Bempp::DiscreteSparseBoundaryOperator< ValueType >, Bempp::DiscreteDenseBoundaryOperator< ValueType >, and Bempp::DiscreteNullBoundaryOperator< ValueType >.

Friends And Related Function Documentation

template<typename RealType >

shared_ptr< DiscreteBoundaryOperator< std::complex< RealType > > > complexify ( const shared_ptr< const DiscreteBoundaryOperator< RealType > > & op )

The returned operator has the same matrix representation as the original operator, but is able to act on vectors of complex numbers.

An exception is thrown if op is null.

template<typename ValueType >

shared_ptr< DiscreteBoundaryOperator< ValueType > > conjugate ( const shared_ptr< const DiscreteBoundaryOperator< ValueType > > & op )

An exception is thrown if op is null.

References Bempp::CONJUGATE.

template<typename ValueType >

shared_ptr< DiscreteBoundaryOperator< ValueType > > conjugateTranspose ( const shared_ptr< const DiscreteBoundaryOperator< ValueType > > & op )

An exception is thrown if op is null.

References Bempp::CONJUGATE_TRANSPOSE.

template<typename ValueType >

shared_ptr< DiscreteBoundaryOperator< ValueType > > mul	(	const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &	op1,
		const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &	op2
	)

An exception is thrown if op1 or op2 is null.

template<typename ValueType , typename ScalarType >

boost::enable_if< typename boost::mpl::has_key< boost::mpl::set< float, double, std::complex< float >, std::complex< double > >, ScalarType >, shared_ptr< DiscreteBoundaryOperator< ValueType > > >::type operator*	(	ScalarType	scalar,
		const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &	op
	)

An exception is thrown if op is null.

template<typename ValueType , typename ScalarType >

boost::enable_if< typename boost::mpl::has_key< boost::mpl::set< float, double, std::complex< float >, std::complex< double > >, ScalarType >, shared_ptr< DiscreteBoundaryOperator< ValueType > > >::type operator*	(	const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &	op,
		ScalarType	scalar
	)

An exception is thrown if op is null.

template<typename ValueType >

shared_ptr< DiscreteBoundaryOperator< ValueType > > operator*	(	const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &	op1,
		const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &	op2
	)

An exception is thrown if op1 or op2 is null.

template<typename ValueType >

shared_ptr< DiscreteBoundaryOperator< ValueType > > operator+	(	const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &	op1,
		const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &	op2
	)

An exception is thrown if either op1 or op2 is null.

template<typename ValueType >

shared_ptr< const DiscreteBoundaryOperator< ValueType > > operator- ( const shared_ptr< const DiscreteBoundaryOperator< ValueType > > & op )

An exception is thrown if op is null.

template<typename ValueType >

shared_ptr< DiscreteBoundaryOperator< ValueType > > operator-	(	const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &	op1,
		const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &	op2
	)

An exception is thrown if either op1 or op2 is null.

template<typename ValueType , typename ScalarType >

shared_ptr< DiscreteBoundaryOperator< ValueType > > operator/	(	const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &	op,
		ScalarType	scalar
	)

An exception is thrown if op is null.

template<typename ValueType >

shared_ptr< DiscreteBoundaryOperator< ValueType > > transpose ( const shared_ptr< const DiscreteBoundaryOperator< ValueType > > & op )

An exception is thrown if op is null.

References Bempp::TRANSPOSE.

template<typename ValueType >

shared_ptr< DiscreteBoundaryOperator< ValueType > > transpose	(	TranspositionMode	trans,
		const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &	op
	)

An exception is thrown if op is null.

The documentation for this class was generated from the following files:

/home/wojtek/Projects/BEM/bempp-sven/bempp/lib/assembly/assembled_potential_operator.hpp
/home/wojtek/Projects/BEM/bempp-sven/bempp/lib/assembly/discrete_boundary_operator.hpp
/home/wojtek/Projects/BEM/bempp-sven/bempp/lib/assembly/discrete_boundary_operator.cpp

Public Member Functions

Protected Member Functions

Private Member Functions

Related Functions

Detailed Description

template<typename ValueType> class Bempp::DiscreteBoundaryOperator< ValueType >

Member Function Documentation

Friends And Related Function Documentation

template<typename ValueType>
class Bempp::DiscreteBoundaryOperator< ValueType >
