Sum of discrete linear operators stored separately. More...

#include </home/wojtek/Projects/BEM/bempp-sven/bempp/lib/assembly/discrete_boundary_operator_sum.hpp>

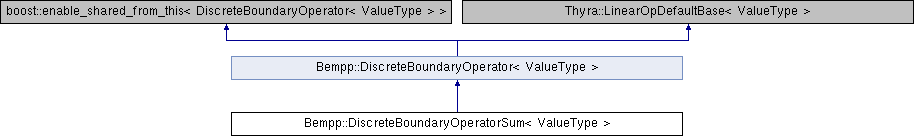

Inheritance diagram for Bempp::DiscreteBoundaryOperatorSum< ValueType >:

Public Types
typedef DiscreteBoundaryOperator < ValueType >	Base

Public Member Functions
	DiscreteBoundaryOperatorSum (const shared_ptr< const Base > &term1, const shared_ptr< const Base > &term2)
	Constructor. More...

virtual arma::Mat< ValueType >	asMatrix () const
	Matrix representation of the operator. More...

virtual unsigned int	rowCount () const
	Number of rows of the operator.

virtual unsigned int	columnCount () const
	Number of columns of the operator.

virtual void	addBlock (const std::vector< int > &rows, const std::vector< int > &cols, const ValueType alpha, arma::Mat< ValueType > &block) const
	Add a subblock of this operator to a matrix. More...

virtual shared_ptr< const DiscreteBoundaryOperator < ValueType > >	asDiscreteAcaBoundaryOperator (double eps=-1, int maximumRank=-1, bool interleave=false) const
	Return a representation that can be cast to a DiscreteAcaBoundaryOperator. More...

virtual Teuchos::RCP< const Thyra::VectorSpaceBase < ValueType > >	domain () const

virtual Teuchos::RCP< const Thyra::VectorSpaceBase < ValueType > >	range () const

Public Member Functions inherited from Bempp::DiscreteBoundaryOperator< ValueType >
virtual	~DiscreteBoundaryOperator ()
	Destructor.

void	apply (const Thyra::EOpTransp M_trans, const Thyra::MultiVectorBase< ValueType > &x_in, const Thyra::Ptr< Thyra::MultiVectorBase< ValueType > > &y_inout, const ValueType alpha, const ValueType beta) const
	Apply the linear operator to a multivector. More...

void	apply (const TranspositionMode trans, const arma::Mat< ValueType > &x_in, arma::Mat< ValueType > &y_inout, const ValueType alpha, const ValueType beta) const
	Apply the operator to a vector. More...

virtual void	dump () const
	Write a textual representation of the operator to standard output. More...

Protected Member Functions
virtual bool	opSupportedImpl (Thyra::EOpTransp M_trans) const

Protected Member Functions inherited from Bempp::DiscreteBoundaryOperator< ValueType >
virtual void	applyImpl (const Thyra::EOpTransp M_trans, const Thyra::MultiVectorBase< ValueType > &X_in, const Teuchos::Ptr< Thyra::MultiVectorBase< ValueType > > &Y_inout, const ValueType alpha, const ValueType beta) const

Private Member Functions
virtual void	applyBuiltInImpl (const TranspositionMode trans, const arma::Col< ValueType > &x_in, arma::Col< ValueType > &y_inout, const ValueType alpha, const ValueType beta) const

Additional Inherited Members
Related Functions inherited from Bempp::DiscreteBoundaryOperator< ValueType >
template<typename ValueType >
shared_ptr< const DiscreteBoundaryOperator < ValueType > >	operator+ (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op)
	Unary plus: return a copy of the argument.

template<typename ValueType >
shared_ptr< const DiscreteBoundaryOperator < ValueType > >	operator- (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op)
	Return a shared pointer to a DiscreteBoundaryOperator representing the operand multiplied by -1. More...

template<typename ValueType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	operator+ (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op1, const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op2)
	Return a shared pointer to a DiscreteBoundaryOperator representing the sum of the operands. More...

template<typename ValueType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	operator- (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op1, const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op2)
	Return a shared pointer to a DiscreteBoundaryOperator representing the difference of the operands. More...

template<typename ValueType , typename ScalarType >
boost::enable_if< typename boost::mpl::has_key < boost::mpl::set< float, double, std::complex< float > , std::complex< double > >, ScalarType >, shared_ptr < DiscreteBoundaryOperator < ValueType > > >::type	operator* (ScalarType scalar, const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op)
	Return a shared pointer to a DiscreteBoundaryOperator representing the operator `*op` multiplied by `scalar`. More...

template<typename ValueType , typename ScalarType >
boost::enable_if< typename boost::mpl::has_key < boost::mpl::set< float, double, std::complex< float > , std::complex< double > >, ScalarType >, shared_ptr < DiscreteBoundaryOperator < ValueType > > >::type	operator* (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op, ScalarType scalar)
	Return a shared pointer to a DiscreteBoundaryOperator representing the operator `*op` multiplied by `scalar`. More...

template<typename ValueType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	operator* (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op1, const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op2)
	Return a shared pointer to a DiscreteBoundaryOperator representing a composition of operators, `(op1) (*op2)`. More...

template<typename ValueType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	mul (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op1, const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op2)
	Return a shared pointer to a DiscreteBoundaryOperator representing a composition of operators, `(op1) (*op2)`. More...

template<typename ValueType , typename ScalarType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	operator/ (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op, ScalarType scalar)
	Return a shared pointer to a DiscreteBoundaryOperator representing the operator `*op` divided by `scalar`. More...

template<typename ValueType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	transpose (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op)
	Return a shared pointer to a DiscreteBoundaryOperator representing the transposed operator `*op`. More...

template<typename ValueType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	conjugate (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op)
	Return a shared pointer to a DiscreteBoundaryOperator representing the conjugated operator `*op`. More...

template<typename ValueType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	conjugateTranspose (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op)
	Return a shared pointer to a DiscreteBoundaryOperator representing the conjugate-transposed operator `*op`. More...

template<typename ValueType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	transpose (TranspositionMode trans, const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op)
	Return a shared pointer to a DiscreteBoundaryOperator representing the transposed and/or conjugated (depending on the value of the argument `trans`) operator `*op`. More...

template<typename RealType >
shared_ptr < DiscreteBoundaryOperator < std::complex< RealType > > >	complexify (const shared_ptr< const DiscreteBoundaryOperator< RealType > > &op)
	Return a shared pointer to a DiscreteBoundaryOperator representing the "complexified" operator `*op`. More...

Detailed Description

template<typename ValueType>
class Bempp::DiscreteBoundaryOperatorSum< ValueType >

Sum of discrete linear operators stored separately.

Constructor & Destructor Documentation

template<typename ValueType >

Bempp::DiscreteBoundaryOperatorSum< ValueType >::DiscreteBoundaryOperatorSum	(	const shared_ptr< const Base > &	term1,
		const shared_ptr< const Base > &	term2
	)

Constructor.

Construct a discrete operator representing the sum of the operators term1 and term2.

Note: Both operators must be non-null and have identical dimensions, otherwise a std::invalid_argument exception is thrown.

Member Function Documentation

template<typename ValueType >

void Bempp::DiscreteBoundaryOperatorSum< ValueType >::addBlock	(	const std::vector< int > &	rows,
		const std::vector< int > &	cols,
		const ValueType	alpha,
		arma::Mat< ValueType > &	block
	)		const

virtual

Add a subblock of this operator to a matrix.

Perform the operation block += alpha * L[rows, cols], where block is a matrix, alpha a scalar and L[rows, cols] a subblock of this discrete linear operator.

Parameters

[in]	rows	Vector of row indices.
[in]	cols	Vector of column indices.
[in]	alpha	Multiplier.
[in,out]	block	On entry, matrix of size (`rows.size()`, `cols.size()`). On exit, each element (i, j) of this matrix will be augmented by the element (`rows[i]`, `cols[j]`) of this operator, multiplied by `alpha`.

Row and column indices may be unsorted.

This method need not be supported by all subclasses. It is mainly intended for internal use during weak-form assembly.

Implements Bempp::DiscreteBoundaryOperator< ValueType >.

template<typename ValueType >

shared_ptr< const DiscreteBoundaryOperator< ValueType > > Bempp::DiscreteBoundaryOperatorSum< ValueType >::asDiscreteAcaBoundaryOperator	(	double	eps = `-1`,
		int	maximumRank = `-1`,
		bool	interleave = `false`
	)		const

virtual

Return a representation that can be cast to a DiscreteAcaBoundaryOperator.

The conversion only succeeds if all members of the DiscreteBoundaryOperator itself can be cast to a DiscreteAcaBoundaryOperator or if it is a linear combination of DiscreteOperators that can be cast to type DiscreteAcaBoundaryOperator. Operator compositions are not yet supported by this function.

Parameters

[in]	eps	The $\epsilon$ parameter controlling the accuracy of H-matrix addition in case this operation is needed to construct the H-matrix representation of the operator. If `eps` is negative (default), it is set to the smaller of the values of $\epsilon$ specified during the creation of the two H-matrices to be added.
[in]	maximumRank	Maximum rank of blocks to be considered low rank when adding two H-Matrices. If `maximumRank` is negative, it is set to the larger of the maximum ranks specified during the creation of the two H-matrices to be added.

Returns: A pointer to a DiscreteBoundaryOperator object castable to DiscreteAcaBoundaryOperator.

Note: This function throws an exception if BEM++ has been compiled without AHMED.

Reimplemented from Bempp::DiscreteBoundaryOperator< ValueType >.

template<typename ValueType >

arma::Mat< ValueType > Bempp::DiscreteBoundaryOperatorSum< ValueType >::asMatrix ( ) const

virtual

Matrix representation of the operator.

The default implementation is slow and should be overridden where possible.

Reimplemented from Bempp::DiscreteBoundaryOperator< ValueType >.

The documentation for this class was generated from the following files:

/home/wojtek/Projects/BEM/bempp-sven/bempp/lib/assembly/discrete_boundary_operator_sum.hpp
/home/wojtek/Projects/BEM/bempp-sven/bempp/lib/assembly/discrete_boundary_operator_sum.cpp
