Discrete boundary operator stored as a sparse matrix. More...

#include </home/wojtek/Projects/BEM/bempp-sven/bempp/lib/assembly/discrete_sparse_boundary_operator.hpp>

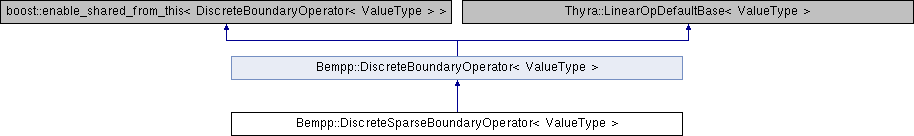

Inheritance diagram for Bempp::DiscreteSparseBoundaryOperator< ValueType >:

Public Member Functions
	DiscreteSparseBoundaryOperator (const shared_ptr< const Epetra_CrsMatrix > &mat, int symmetry=NO_SYMMETRY, TranspositionMode trans=NO_TRANSPOSE, const shared_ptr< AhmedBemBlcluster > &blockCluster=shared_ptr< AhmedBemBlcluster >(), const shared_ptr< IndexPermutation > &domainPermutation=shared_ptr< IndexPermutation >(), const shared_ptr< IndexPermutation > &rangePermutation=shared_ptr< IndexPermutation >())
	Constructor. More...

virtual void	dump () const
	Write a textual representation of the operator to standard output. More...

virtual arma::Mat< ValueType >	asMatrix () const
	Matrix representation of the operator. More...

virtual unsigned int	rowCount () const
	Number of rows of the operator.

virtual unsigned int	columnCount () const
	Number of columns of the operator.

virtual void	addBlock (const std::vector< int > &rows, const std::vector< int > &cols, const ValueType alpha, arma::Mat< ValueType > &block) const
	Add a subblock of this operator to a matrix. More...

virtual shared_ptr< const DiscreteBoundaryOperator < ValueType > >	asDiscreteAcaBoundaryOperator (double eps=-1, int maximumRank=-1, bool interleave=false) const
	Return a representation that can be cast to a DiscreteAcaBoundaryOperator. More...

shared_ptr< const Epetra_CrsMatrix >	epetraMatrix () const
	Return a shared pointer to the sparse matrix stored within this operator. More...

TranspositionMode	transpositionMode () const
	Return the active sparse matrix transformation. More...

int	symmetryMode () const
	Return the symmetry type of the sparse matrix.

virtual Teuchos::RCP< const Thyra::VectorSpaceBase < ValueType > >	domain () const

virtual Teuchos::RCP< const Thyra::VectorSpaceBase < ValueType > >	range () const

Public Member Functions inherited from Bempp::DiscreteBoundaryOperator< ValueType >
virtual	~DiscreteBoundaryOperator ()
	Destructor.

void	apply (const Thyra::EOpTransp M_trans, const Thyra::MultiVectorBase< ValueType > &x_in, const Thyra::Ptr< Thyra::MultiVectorBase< ValueType > > &y_inout, const ValueType alpha, const ValueType beta) const
	Apply the linear operator to a multivector. More...

void	apply (const TranspositionMode trans, const arma::Mat< ValueType > &x_in, arma::Mat< ValueType > &y_inout, const ValueType alpha, const ValueType beta) const
	Apply the operator to a vector. More...

Static Public Member Functions
static shared_ptr< const DiscreteSparseBoundaryOperator < ValueType > >	castToSparse (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &discreteOperator)
	Downcast a shared pointer to a DiscreteBoundaryOperator object to a shared pointer to a DiscreteSparseBoundaryOperator. More...

Protected Member Functions
virtual bool	opSupportedImpl (Thyra::EOpTransp M_trans) const

Protected Member Functions inherited from Bempp::DiscreteBoundaryOperator< ValueType >
virtual void	applyImpl (const Thyra::EOpTransp M_trans, const Thyra::MultiVectorBase< ValueType > &X_in, const Teuchos::Ptr< Thyra::MultiVectorBase< ValueType > > &Y_inout, const ValueType alpha, const ValueType beta) const

Private Types
typedef Fiber::ScalarTraits < ValueType >::RealType	CoordinateType

typedef AhmedDofWrapper < CoordinateType >	AhmedDofType

typedef bbxbemblcluster < AhmedDofType, AhmedDofType >	AhmedBemBlcluster

typedef mblock< typename AhmedTypeTraits< ValueType > ::Type >	AhmedMblock

Related Functions
(Note that these are not member functions.)
shared_ptr< Epetra_CrsMatrix >	sparseCholesky (const Epetra_CrsMatrix &mat)
	Return the first factor of the Cholesky factorisation of matrix `mat`. More...

shared_ptr< Epetra_CrsMatrix >	sparseInverse (const Epetra_CrsMatrix &mat)
	Return the inverse of a block-diagonal sparse matrix `mat`. More...

Related Functions inherited from Bempp::DiscreteBoundaryOperator< ValueType >
template<typename ValueType >
shared_ptr< const DiscreteBoundaryOperator < ValueType > >	operator+ (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op)
	Unary plus: return a copy of the argument.

template<typename ValueType >
shared_ptr< const DiscreteBoundaryOperator < ValueType > >	operator- (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op)
	Return a shared pointer to a DiscreteBoundaryOperator representing the operand multiplied by -1. More...

template<typename ValueType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	operator+ (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op1, const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op2)
	Return a shared pointer to a DiscreteBoundaryOperator representing the sum of the operands. More...

template<typename ValueType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	operator- (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op1, const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op2)
	Return a shared pointer to a DiscreteBoundaryOperator representing the difference of the operands. More...

template<typename ValueType , typename ScalarType >
boost::enable_if< typename boost::mpl::has_key < boost::mpl::set< float, double, std::complex< float > , std::complex< double > >, ScalarType >, shared_ptr < DiscreteBoundaryOperator < ValueType > > >::type	operator* (ScalarType scalar, const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op)
	Return a shared pointer to a DiscreteBoundaryOperator representing the operator `*op` multiplied by `scalar`. More...

template<typename ValueType , typename ScalarType >
boost::enable_if< typename boost::mpl::has_key < boost::mpl::set< float, double, std::complex< float > , std::complex< double > >, ScalarType >, shared_ptr < DiscreteBoundaryOperator < ValueType > > >::type	operator* (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op, ScalarType scalar)
	Return a shared pointer to a DiscreteBoundaryOperator representing the operator `*op` multiplied by `scalar`. More...

template<typename ValueType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	operator* (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op1, const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op2)
	Return a shared pointer to a DiscreteBoundaryOperator representing a composition of operators, `(op1) (*op2)`. More...

template<typename ValueType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	mul (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op1, const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op2)
	Return a shared pointer to a DiscreteBoundaryOperator representing a composition of operators, `(op1) (*op2)`. More...

template<typename ValueType , typename ScalarType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	operator/ (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op, ScalarType scalar)
	Return a shared pointer to a DiscreteBoundaryOperator representing the operator `*op` divided by `scalar`. More...

template<typename ValueType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	transpose (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op)
	Return a shared pointer to a DiscreteBoundaryOperator representing the transposed operator `*op`. More...

template<typename ValueType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	conjugate (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op)
	Return a shared pointer to a DiscreteBoundaryOperator representing the conjugated operator `*op`. More...

template<typename ValueType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	conjugateTranspose (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op)
	Return a shared pointer to a DiscreteBoundaryOperator representing the conjugate-transposed operator `*op`. More...

template<typename ValueType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	transpose (TranspositionMode trans, const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op)
	Return a shared pointer to a DiscreteBoundaryOperator representing the transposed and/or conjugated (depending on the value of the argument `trans`) operator `*op`. More...

template<typename RealType >
shared_ptr < DiscreteBoundaryOperator < std::complex< RealType > > >	complexify (const shared_ptr< const DiscreteBoundaryOperator< RealType > > &op)
	Return a shared pointer to a DiscreteBoundaryOperator representing the "complexified" operator `*op`. More...

Detailed Description

template<typename ValueType>
class Bempp::DiscreteSparseBoundaryOperator< ValueType >

Discrete boundary operator stored as a sparse matrix.

Constructor & Destructor Documentation

template<typename ValueType >

Bempp::DiscreteSparseBoundaryOperator< ValueType >::DiscreteSparseBoundaryOperator	(	const shared_ptr< const Epetra_CrsMatrix > &	mat,
		int	symmetry = `NO_SYMMETRY`,
		TranspositionMode	trans = `NO_TRANSPOSE`,
		const shared_ptr< AhmedBemBlcluster > &	blockCluster = `shared_ptr<AhmedBemBlcluster>()`,
		const shared_ptr< IndexPermutation > &	domainPermutation = `shared_ptr<IndexPermutation>()`,
		const shared_ptr< IndexPermutation > &	rangePermutation = `shared_ptr<IndexPermutation>()`
	)

Constructor.

Parameters

[in]	mat	Sparse matrix that will be represented by the newly constructed operator. Must not be null.
[in]	symmetry	Symmetry of the matrix. May be any combination of flags defined in the Symmetry enumeration type.
[in]	trans	If different from NO_TRANSPOSE, the discrete operator will represent a transposed and/or complex-conjugated matrix `mat`.

Member Function Documentation

template<typename ValueType >

void Bempp::DiscreteSparseBoundaryOperator< ValueType >::addBlock	(	const std::vector< int > &	rows,
		const std::vector< int > &	cols,
		const ValueType	alpha,
		arma::Mat< ValueType > &	block
	)		const

virtual

Add a subblock of this operator to a matrix.

Perform the operation block += alpha * L[rows, cols], where block is a matrix, alpha a scalar and L[rows, cols] a subblock of this discrete linear operator.

Parameters

[in]	rows	Vector of row indices.
[in]	cols	Vector of column indices.
[in]	alpha	Multiplier.
[in,out]	block	On entry, matrix of size (`rows.size()`, `cols.size()`). On exit, each element (i, j) of this matrix will be augmented by the element (`rows[i]`, `cols[j]`) of this operator, multiplied by `alpha`.

Row and column indices may be unsorted.

This method need not be supported by all subclasses. It is mainly intended for internal use during weak-form assembly.

Implements Bempp::DiscreteBoundaryOperator< ValueType >.

template<typename ValueType >

shared_ptr< const DiscreteBoundaryOperator< ValueType > > Bempp::DiscreteSparseBoundaryOperator< ValueType >::asDiscreteAcaBoundaryOperator	(	double	eps = `-1`,
		int	maximumRank = `-1`,
		bool	interleave = `false`
	)		const

virtual

Return a representation that can be cast to a DiscreteAcaBoundaryOperator.

The conversion only succeeds if all members of the DiscreteBoundaryOperator itself can be cast to a DiscreteAcaBoundaryOperator or if it is a linear combination of DiscreteOperators that can be cast to type DiscreteAcaBoundaryOperator. Operator compositions are not yet supported by this function.

Parameters

[in]	eps	The $\epsilon$ parameter controlling the accuracy of H-matrix addition in case this operation is needed to construct the H-matrix representation of the operator. If `eps` is negative (default), it is set to the smaller of the values of $\epsilon$ specified during the creation of the two H-matrices to be added.
[in]	maximumRank	Maximum rank of blocks to be considered low rank when adding two H-Matrices. If `maximumRank` is negative, it is set to the larger of the maximum ranks specified during the creation of the two H-matrices to be added.

Returns: A pointer to a DiscreteBoundaryOperator object castable to DiscreteAcaBoundaryOperator.

Note: This function throws an exception if BEM++ has been compiled without AHMED.

Reimplemented from Bempp::DiscreteBoundaryOperator< ValueType >.

template<typename ValueType >

arma::Mat< ValueType > Bempp::DiscreteSparseBoundaryOperator< ValueType >::asMatrix ( ) const

virtual

Matrix representation of the operator.

The default implementation is slow and should be overridden where possible.

Reimplemented from Bempp::DiscreteBoundaryOperator< ValueType >.

template<typename ValueType >

shared_ptr< const DiscreteSparseBoundaryOperator< ValueType > > Bempp::DiscreteSparseBoundaryOperator< ValueType >::castToSparse ( const shared_ptr< const DiscreteBoundaryOperator< ValueType > > & discreteOperator )

static

Downcast a shared pointer to a DiscreteBoundaryOperator object to a shared pointer to a DiscreteSparseBoundaryOperator.

If the object referenced by discreteOperator is not in fact a DiscreteSparseBoundaryOperator, a std::bad_cast exception is thrown.

Referenced by Bempp::DiscreteInverseSparseBoundaryOperator< ValueType >::discreteSparseInverse().

template<typename ValueType >

void Bempp::DiscreteSparseBoundaryOperator< ValueType >::dump ( ) const

virtual

Write a textual representation of the operator to standard output.

The default implementation prints the matrix returned by asMatrix().

Reimplemented from Bempp::DiscreteBoundaryOperator< ValueType >.

template<typename ValueType >

shared_ptr< const Epetra_CrsMatrix > Bempp::DiscreteSparseBoundaryOperator< ValueType >::epetraMatrix ( ) const

Return a shared pointer to the sparse matrix stored within this operator.

Note: The discrete operator represents the matrix returned by this function and possibly transposed and/or complex-conjugated, depending on the value returned by transpositionMode().

template<typename ValueType >

TranspositionMode Bempp::DiscreteSparseBoundaryOperator< ValueType >::transpositionMode ( ) const

Return the active sparse matrix transformation.

Indicates whether this operator represents the unmodified sparse matrix passed in the constructor or its transformation (transposition and/or conjugation).

Friends And Related Function Documentation

template<typename ValueType >

shared_ptr< Epetra_CrsMatrix > sparseCholesky ( const Epetra_CrsMatrix & mat )

The matrix mat is assumed to be symmetric, positive-definite and block-diagonal (effectively it should be the mass matrix of a space of discontinuous functions). The routine returns a shared pointer to a matrix L such that

$A = L L^T,$

where $A$ is the matrix represented by mat.

template<typename ValueType >

shared_ptr< Epetra_CrsMatrix > sparseInverse ( const Epetra_CrsMatrix & mat )

In practice, mat might be the mass matrix of a space of discontinuous functions.

Be aware that explicit inversion of $A$ is usually not the most accurate way to solve the equation $A^{-1} X = B$ .

The documentation for this class was generated from the following files:

/home/wojtek/Projects/BEM/bempp-sven/bempp/lib/assembly/discrete_sparse_boundary_operator.hpp
/home/wojtek/Projects/BEM/bempp-sven/bempp/lib/assembly/discrete_sparse_boundary_operator.cpp
/home/wojtek/Projects/BEM/bempp-sven/bempp/lib/assembly/sparse_cholesky.hpp
/home/wojtek/Projects/BEM/bempp-sven/bempp/lib/assembly/sparse_inverse.hpp
