Transposed and/or conjugated discrete boundary operator. More...

#include </home/wojtek/Projects/BEM/bempp-sven/bempp/lib/assembly/transposed_discrete_boundary_operator.hpp>

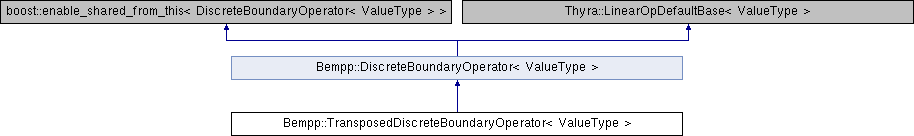

Inheritance diagram for Bempp::TransposedDiscreteBoundaryOperator< ValueType >:

Public Types
typedef DiscreteBoundaryOperator < ValueType >	Base

Public Member Functions
	TransposedDiscreteBoundaryOperator (TranspositionMode trans, const shared_ptr< const Base > &op)
	Constructor. More...

virtual arma::Mat< ValueType >	asMatrix () const
	Matrix representation of the operator. More...

virtual unsigned int	rowCount () const
	Number of rows of the operator.

virtual unsigned int	columnCount () const
	Number of columns of the operator.

virtual void	addBlock (const std::vector< int > &rows, const std::vector< int > &cols, const ValueType alpha, arma::Mat< ValueType > &block) const
	Add a subblock of this operator to a matrix. More...

virtual Teuchos::RCP< const Thyra::VectorSpaceBase < ValueType > >	domain () const

virtual Teuchos::RCP< const Thyra::VectorSpaceBase < ValueType > >	range () const

Public Member Functions inherited from Bempp::DiscreteBoundaryOperator< ValueType >
virtual	~DiscreteBoundaryOperator ()
	Destructor.

void	apply (const Thyra::EOpTransp M_trans, const Thyra::MultiVectorBase< ValueType > &x_in, const Thyra::Ptr< Thyra::MultiVectorBase< ValueType > > &y_inout, const ValueType alpha, const ValueType beta) const
	Apply the linear operator to a multivector. More...

void	apply (const TranspositionMode trans, const arma::Mat< ValueType > &x_in, arma::Mat< ValueType > &y_inout, const ValueType alpha, const ValueType beta) const
	Apply the operator to a vector. More...

virtual shared_ptr< const DiscreteBoundaryOperator >	asDiscreteAcaBoundaryOperator (double eps=-1, int maximumRank=-1, bool interleave=false) const
	Return a representation that can be cast to a DiscreteAcaBoundaryOperator. More...

virtual void	dump () const
	Write a textual representation of the operator to standard output. More...

Protected Member Functions
virtual bool	opSupportedImpl (Thyra::EOpTransp M_trans) const

Protected Member Functions inherited from Bempp::DiscreteBoundaryOperator< ValueType >
virtual void	applyImpl (const Thyra::EOpTransp M_trans, const Thyra::MultiVectorBase< ValueType > &X_in, const Teuchos::Ptr< Thyra::MultiVectorBase< ValueType > > &Y_inout, const ValueType alpha, const ValueType beta) const

Private Member Functions
bool	isTransposed () const

virtual void	applyBuiltInImpl (const TranspositionMode trans, const arma::Col< ValueType > &x_in, arma::Col< ValueType > &y_inout, const ValueType alpha, const ValueType beta) const

Private Attributes
TranspositionMode	m_trans

shared_ptr< const Base >	m_operator

Additional Inherited Members
Related Functions inherited from Bempp::DiscreteBoundaryOperator< ValueType >
template<typename ValueType >
shared_ptr< const DiscreteBoundaryOperator < ValueType > >	operator+ (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op)
	Unary plus: return a copy of the argument.

template<typename ValueType >
shared_ptr< const DiscreteBoundaryOperator < ValueType > >	operator- (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op)
	Return a shared pointer to a DiscreteBoundaryOperator representing the operand multiplied by -1. More...

template<typename ValueType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	operator+ (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op1, const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op2)
	Return a shared pointer to a DiscreteBoundaryOperator representing the sum of the operands. More...

template<typename ValueType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	operator- (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op1, const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op2)
	Return a shared pointer to a DiscreteBoundaryOperator representing the difference of the operands. More...

template<typename ValueType , typename ScalarType >
boost::enable_if< typename boost::mpl::has_key < boost::mpl::set< float, double, std::complex< float > , std::complex< double > >, ScalarType >, shared_ptr < DiscreteBoundaryOperator < ValueType > > >::type	operator* (ScalarType scalar, const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op)
	Return a shared pointer to a DiscreteBoundaryOperator representing the operator `*op` multiplied by `scalar`. More...

template<typename ValueType , typename ScalarType >
boost::enable_if< typename boost::mpl::has_key < boost::mpl::set< float, double, std::complex< float > , std::complex< double > >, ScalarType >, shared_ptr < DiscreteBoundaryOperator < ValueType > > >::type	operator* (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op, ScalarType scalar)
	Return a shared pointer to a DiscreteBoundaryOperator representing the operator `*op` multiplied by `scalar`. More...

template<typename ValueType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	operator* (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op1, const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op2)
	Return a shared pointer to a DiscreteBoundaryOperator representing a composition of operators, `(op1) (*op2)`. More...

template<typename ValueType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	mul (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op1, const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op2)
	Return a shared pointer to a DiscreteBoundaryOperator representing a composition of operators, `(op1) (*op2)`. More...

template<typename ValueType , typename ScalarType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	operator/ (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op, ScalarType scalar)
	Return a shared pointer to a DiscreteBoundaryOperator representing the operator `*op` divided by `scalar`. More...

template<typename ValueType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	transpose (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op)
	Return a shared pointer to a DiscreteBoundaryOperator representing the transposed operator `*op`. More...

template<typename ValueType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	conjugate (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op)
	Return a shared pointer to a DiscreteBoundaryOperator representing the conjugated operator `*op`. More...

template<typename ValueType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	conjugateTranspose (const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op)
	Return a shared pointer to a DiscreteBoundaryOperator representing the conjugate-transposed operator `*op`. More...

template<typename ValueType >
shared_ptr < DiscreteBoundaryOperator < ValueType > >	transpose (TranspositionMode trans, const shared_ptr< const DiscreteBoundaryOperator< ValueType > > &op)
	Return a shared pointer to a DiscreteBoundaryOperator representing the transposed and/or conjugated (depending on the value of the argument `trans`) operator `*op`. More...

template<typename RealType >
shared_ptr < DiscreteBoundaryOperator < std::complex< RealType > > >	complexify (const shared_ptr< const DiscreteBoundaryOperator< RealType > > &op)
	Return a shared pointer to a DiscreteBoundaryOperator representing the "complexified" operator `*op`. More...

Detailed Description

template<typename ValueType>
class Bempp::TransposedDiscreteBoundaryOperator< ValueType >

Transposed and/or conjugated discrete boundary operator.

This class represents a transposed, conjugated or conjugate-transposed discrete boundary operator scalar.

Constructor & Destructor Documentation

template<typename ValueType >

Bempp::TransposedDiscreteBoundaryOperator< ValueType >::TransposedDiscreteBoundaryOperator	(	TranspositionMode	trans,
		const shared_ptr< const Base > &	op
	)

Constructor.

Construct the discrete boundary operator representing the transpose, conjugate or conjugate transpose of the operator op.

References Bempp::CONJUGATE, Bempp::CONJUGATE_TRANSPOSE, Bempp::NO_TRANSPOSE, and Bempp::TRANSPOSE.

Member Function Documentation

template<typename ValueType >

void Bempp::TransposedDiscreteBoundaryOperator< ValueType >::addBlock	(	const std::vector< int > &	rows,
		const std::vector< int > &	cols,
		const ValueType	alpha,
		arma::Mat< ValueType > &	block
	)		const

virtual

Add a subblock of this operator to a matrix.

Perform the operation block += alpha * L[rows, cols], where block is a matrix, alpha a scalar and L[rows, cols] a subblock of this discrete linear operator.

Parameters

[in]	rows	Vector of row indices.
[in]	cols	Vector of column indices.
[in]	alpha	Multiplier.
[in,out]	block	On entry, matrix of size (`rows.size()`, `cols.size()`). On exit, each element (i, j) of this matrix will be augmented by the element (`rows[i]`, `cols[j]`) of this operator, multiplied by `alpha`.

Row and column indices may be unsorted.

This method need not be supported by all subclasses. It is mainly intended for internal use during weak-form assembly.

Implements Bempp::DiscreteBoundaryOperator< ValueType >.

template<typename ValueType >

arma::Mat< ValueType > Bempp::TransposedDiscreteBoundaryOperator< ValueType >::asMatrix ( ) const

virtual

Matrix representation of the operator.

The default implementation is slow and should be overridden where possible.

Reimplemented from Bempp::DiscreteBoundaryOperator< ValueType >.

References Bempp::CONJUGATE, Bempp::CONJUGATE_TRANSPOSE, Bempp::NO_TRANSPOSE, and Bempp::TRANSPOSE.

The documentation for this class was generated from the following files:

/home/wojtek/Projects/BEM/bempp-sven/bempp/lib/assembly/transposed_discrete_boundary_operator.hpp
/home/wojtek/Projects/BEM/bempp-sven/bempp/lib/assembly/transposed_discrete_boundary_operator.cpp
