Fast assembly via Hierarchical matrices

Assembling boundary integral operators is expensive since the matrices are generally dense. Hence, if \(N\) is the number of elements in the grid the overall complexity of the assembly grows like \(O(N^3)\) and the cost of a matrix-vector product grows like \(O(N^2)\). This makes large problems infeasible on standard hardware.

In recent years two techniques have been established to speed-up the assembly of boundary integral operators: Fast Multipole Methods (FMM) and Hierarchical Matrix (H-Matrix) techniques. BEM++ currently implements the latter one. It brings down the cost of assembly and matrix-vector products for integral operators to \(O(N\log N)\), making even larger problems with hundred thousands of degrees of freedom possible on a single workstation.

Introduction to hierarchical matrices

Hierarchical matrices are a complex topic. For a good introduction we refer to the MPI Lecture Notes on hierarchical matrices. Another good resource is the recent book on hierarchical matrices by W. Hackbusch.

Using hierarchical matrix assembly

Fast H-Matrix assembly of boundary and potential operators is enabled by default in BEM++. The corresponding options are bempp.api.global_parameters.assembly.boundary_operator_assembly_type and bempp.api.global_parameters.assembly.potential_operator_assembly_type. By default both are set to \(hmat\), which enables H-Matrix assembly. For very small problems it is advisable to change the boundary operator assembly type to dense as there is a larger overhead of H-Matrix techniques for small problems.

A range of parameters controls the H-Matrix assembly itself. The most important one is the accuracy parameter bempp.api.global_parameters.hmat.eps. This specifies the accuracy of the H-Matrix approximation, and by default is set to \(1E-3\). The best value is problem dependent. In the following we summarize all parameters that control the assembly. For very large problems it is also advisable to inrease the value of bempp.api.global_parameters.hmat.max_block_size. As default it is set to \(2048\). This restricts the largest size an admissible matrix block can have that will be low-rank approximated. Choosing a very large value can have negative effect on the load-balancing between the different cores during assembly. Choosing a too small value can lead to a significant increase in overall computational complexity.

By default BEM++ uses a coarsening strategy to post-process the hierarchical matrix assembly und further reduce the amount of memory an H-Matrix requires. This post-processing is based an randomized low-rank approximations. In most of our experiments it increased the assembly time by around 10% and often reduced the memory consumption by close to 50%. However, if it is not desired then the parameter bempp.api.global_parameters.hmat.coarsening should be set to False. The accuracy of the coarsening strategy is by default the same as the assembly. Other values can be set by modifying bempp.api.global_parameters.hmat.coarsening_accuracy.

Querying hierarchical matrices

Operators assembled via hierarchical matrices mostly behave in the same way as operators assembled using dense matrix techniques and the interface is identical. However, it is often desirable to query advanced information from H-Matrices. This is implemented in the module bempp.api.hmatrix_interface.

Let us assemble a simple H-Matrix operator over a regular sphere.

import bempp.api
grid = bempp.api.shapes.regular_sphere(4)
space = bempp.api.function_space(grid, "DP", 0)
discrete_operator = bempp.api.operators.boundary.laplace.single_layer(
    space, space, space).weak_form()

Since H-Matrix assemble is automatically active we do not have to do anything else. We can now collect some information on the H-Matrix.

To find out the memory consumption in kb we can use

bempp.api.hmatrix_interface.mem_size(discrete_operator)

This will show the amount of storage that the H-Matrix data needs (not that it does not count storage of administrational data such as the underlying tree structure).

The total number of blocks in the H-Matrix is given by

bempp.api.hmatrix_interface.number_of_blocks(discrete_operator)

Similar commands exist for the number of dense blocks and the number of low-rank blocks.

BEM++ also gives access to the complete underlying tree structure. To obtain the block cluster tree the command

tree = bempp.api.hmatrix_interface.block_cluster_tree(discrete_operator)

can be used. To plot the tree call

tree.plot()

This command requires that PyQt4 is installed.

An iterator over all leaf nodes of the tree is given by tree.leaf_nodes. The root node of the tree is obtained by

root = tree.root

From the root node the tree can be traversed hierarchically. The children of a node are available through an iterator. Hence, to iterate through the four children of root use

for child in root.children:
    print((child.row_cluster_range, child.column_cluster_range))

This prints out the ranges of the four subnodes of root. Subnodes are traversed in C-style order. Hence, if at the first level the H-Matrix has the form

\[\begin{split}A = \begin{bmatrix} A_{11} & A_{12}\\ A_{21} & A_{22} \end{bmatrix}\end{split}\]

the children iterator returns the nodes in the order \(A_{11}\), \(A_{12}\), \(A_{21}\), \(A_{22}\).

To get from the leafs of the block cluster tree to the data associated with the leafs the function bempp.api.hmatrix_interface.data_block can be used.

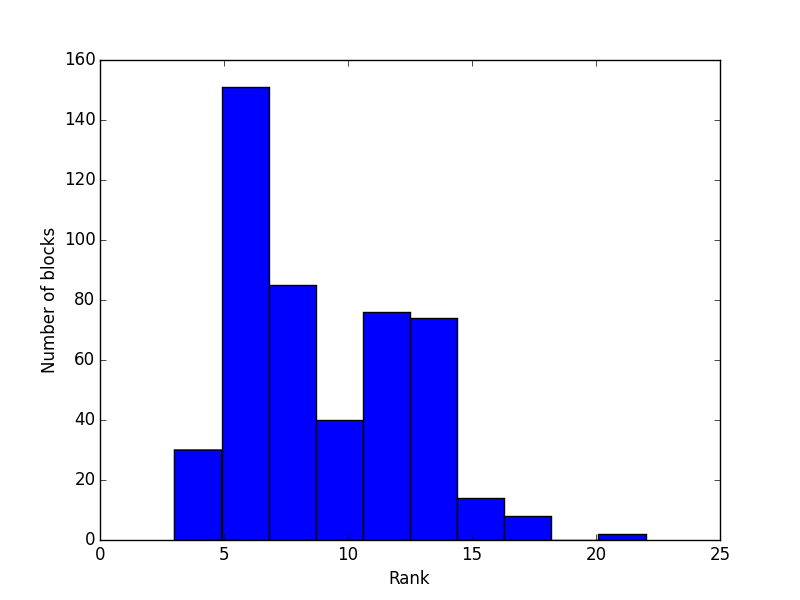

For example, the following code makes a histogram plot of the ranks of the data for all admissible nodes in the above created H-Matrix.

import matplotlib.pyplot as plt
admissible_nodes = [node for node in tree.leaf_nodes if node.admissible]
ranks = [bempp.api.hmatrix_interface.data_block(discrete_operator, node).rank \
    for node in admissible_nodes]
plt.hist(ranks)
plt.xlabel('Rank')
plt.ylabel('Number of blocks')
plt.show()

The result looks as follows.

_images/h_matrix_hist.png

Most low-rank data blocks are compressed down to a rank of around six.

Function and class reference

class bempp.core.hmat.block_cluster_tree.BlockClusterTree

Interface to the block cluster tree structre of an H-Matrix.

leaf_nodes

Return an iterator over the leaf nodes.

plot(self, file_name='block_cluster_tree.png', display=True, width=2000, height=2000, delete=True)

Plot a given block cluster tree into a file. If display is True the plot is also displayed.

Parameters:
  • file_name (string) – name of the output file.
  • display (bool) – If True also display the plot.
  • width (int) – Width in pixels.
  • height (int) – Height in pixels.
  • delete (bool) – If True image is deleted after displaying it.

Notes

This method requires that PyQt4 is installed.

root

Return the root node of the tree.

class bempp.core.hmat.block_cluster_tree.BlockClusterTreeNode

Interface to a single node of the block cluster tree.

admissible

Return True if the node is admissible, otherwise False.

child(self, int i)

Access to a child node by index 0 <= i < 4.

children

Return an iterator over all child nodes.

cluster_distance

Return the distance between the associated row and column cluster node.

column_cluster_range

Return the range of the associated column cluster node.

diameters

Return a tuple with the diameters of the row cluster bounding box and the column cluster bounding box.

is_leaf

Return True if the node is a leaf, otherwise False.

row_cluster_range

Return the range of the associated row cluster node.

shape

Return the shape of the block represented by this node.

class bempp.core.hmat.hmatrix_data.HMatrixDataBase

Base class for H-Matrix data.

block_type

Returns the type of the data block (dense or low_rank_ab).

dtype

Returns the data type.

mem_size

Returns the memory size in kb of the data.

rank

Returns the rank of the data.

shape

Returns the shape of the data block.

class bempp.core.hmat.hmatrix_data.HMatrixLowRankData

Interface to low-rank H-Matrix data.

This class provides an interface to low-rank H-Matrix data. Algebraically, the stored matrix D has the form D = A * B, where A is an (m, k) matrix and B a (k, n) matrix. Here, k is the rank, m is the number of rows and n is the number of columns.

A

Returns the matrix A as NumPy array.

B

Returns the matrix B as NumPy array.

class bempp.core.hmat.hmatrix_data.HMatrixDenseData

Interface to dense H-Matrix data.

This class provides an interface to dense H-Matrix data, that is internally the data is stored as a dense matrix A.

A

Return the dense matrix.

bempp.api.hmat.hmatrix_interface.number_of_blocks(discrete_operator)

Return the number of blocks for a HMatrix operator.

bempp.api.hmat.hmatrix_interface.number_of_dense_blocks(discrete_operator)

Return the number of dense blocks for a HMatrix operator.

bempp.api.hmat.hmatrix_interface.number_of_low_rank_blocks(discrete_operator)

Return the number of low rank blocks for a HMatrix operator.

bempp.api.hmat.hmatrix_interface.mem_size(discrete_operator)

Return the memory size in kb for a HMatrix operator.

bempp.api.hmat.hmatrix_interface.block_cluster_tree(discrete_operator)

Return the block cluster tree for a HMatrix operator.

bempp.api.hmat.hmatrix_interface.data_block(discrete_operator, block_cluster_tree_node)

Return the data block associated with a block cluster tree node.
