Abstract (non-discretized) boundary operator. More...

#include </home/wojtek/Projects/BEM/bempp-sven/bempp/lib/assembly/abstract_boundary_operator.hpp>

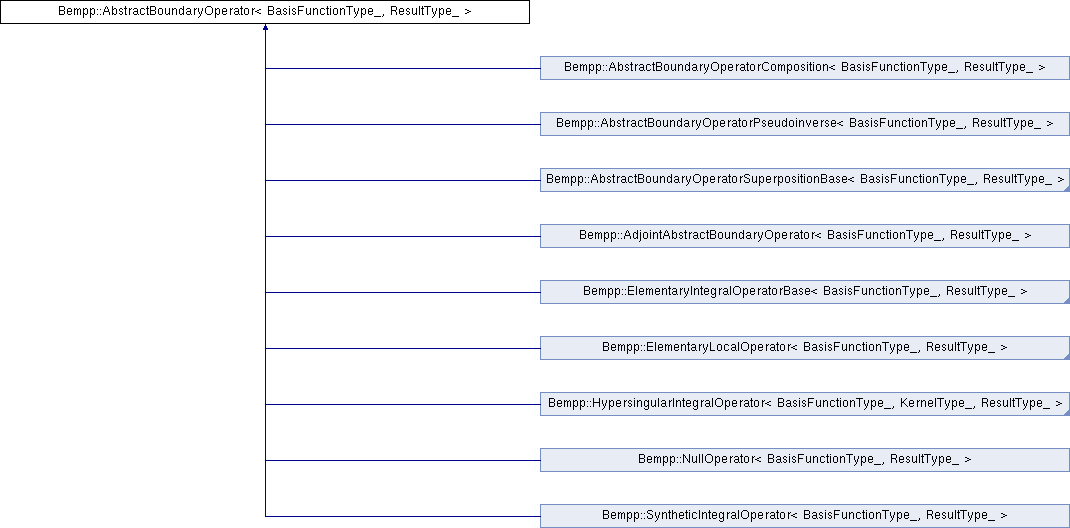

Inheritance diagram for Bempp::AbstractBoundaryOperator< BasisFunctionType_, ResultType_ >:

Public Types
typedef BasisFunctionType_	BasisFunctionType
	Type of the values of the (components of the) basis functions into which functions acted upon by the operator are expanded.

typedef ResultType_	ResultType
	Type used to represent elements of the weak form of the operator.

typedef ScalarTraits < ResultType >::RealType	CoordinateType
	Type used to represent coordinates.

typedef Fiber::QuadratureStrategy < BasisFunctionType, ResultType, GeometryFactory >	QuadratureStrategy
	Type of the appropriate instantiation of Fiber::QuadratureStrategy.

Public Member Functions
Construction and destruction
	AbstractBoundaryOperator (const shared_ptr< const Space< BasisFunctionType > > &domain, const shared_ptr< const Space< BasisFunctionType > > &range, const shared_ptr< const Space< BasisFunctionType > > &dualToRange, const std::string &label, int symmetry)
	Constructor. More...

virtual	~AbstractBoundaryOperator ()
	Destructor.

virtual BEMPP_DEPRECATED shared_ptr< const AbstractBoundaryOperatorId >	id () const
	Return the identifier of this operator. More...

Spaces
shared_ptr< const Space < BasisFunctionType > >	domain () const
	Domain. More...

shared_ptr< const Space < BasisFunctionType > >	range () const
	Range. More...

shared_ptr< const Space < BasisFunctionType > >	dualToRange () const
	Dual to range. More...

Other attributes
std::string	label () const
	Return the label of the operator.

int	symmetry () const
	Return the symmetry properties of the operator. More...

virtual bool	isLocal () const =0
	Return whether this operator is local. More...

static std::string	uniqueLabel ()
	Generate and return a new unique label "OpN", where N is a number.

Assembly
shared_ptr < DiscreteBoundaryOperator < ResultType_ > >	assembleWeakForm (const Context< BasisFunctionType_, ResultType_ > &context) const
	Assemble and return the operator's weak form. More...

void	collectDataForAssemblerConstruction (const AssemblyOptions &options, shared_ptr< Fiber::RawGridGeometry< CoordinateType > > &testRawGeometry, shared_ptr< Fiber::RawGridGeometry< CoordinateType > > &trialRawGeometry, shared_ptr< GeometryFactory > &testGeometryFactory, shared_ptr< GeometryFactory > &trialGeometryFactory, shared_ptr< std::vector< const Fiber::Shapeset< BasisFunctionType_ > * > > &testShapesets, shared_ptr< std::vector< const Fiber::Shapeset< BasisFunctionType_ > * > > &trialShapesets, shared_ptr< Fiber::OpenClHandler > &openClHandler, bool &cacheSingularIntegrals) const
	Given an AssemblyOptions object, construct objects necessary for subsequent local assembler construction.

void	collectOptionsIndependentDataForAssemblerConstruction (shared_ptr< Fiber::RawGridGeometry< CoordinateType > > &testRawGeometry, shared_ptr< Fiber::RawGridGeometry< CoordinateType > > &trialRawGeometry, shared_ptr< GeometryFactory > &testGeometryFactory, shared_ptr< GeometryFactory > &trialGeometryFactory, shared_ptr< std::vector< const Fiber::Shapeset< BasisFunctionType_ > * > > &testShapesets, shared_ptr< std::vector< const Fiber::Shapeset< BasisFunctionType_ > * > > &trialShapesets) const
	Construct those objects necessary for subsequent local assembler construction that are independent from assembly options.

void	collectOptionsDependentDataForAssemblerConstruction (const AssemblyOptions &options, const shared_ptr< Fiber::RawGridGeometry< CoordinateType > > &testRawGeometry, const shared_ptr< Fiber::RawGridGeometry< CoordinateType > > &trialRawGeometry, shared_ptr< Fiber::OpenClHandler > &openClHandler, bool &cacheSingularIntegrals) const
	Construct those objects necessary for subsequent local assembler construction that depend on assembly options.

virtual shared_ptr < DiscreteBoundaryOperator < ResultType > >	assembleWeakFormImpl (const Context< BasisFunctionType, ResultType > &context) const =0
	Assemble and return the operator's weak form. More...

Detailed Description

template<typename BasisFunctionType_, typename ResultType_>
class Bempp::AbstractBoundaryOperator< BasisFunctionType_, ResultType_ >

Abstract (non-discretized) boundary operator.

An AbstractBoundaryOperator represents a linear mapping $L : X \to Y$ between two function spaces $X : S \to K^p$ (domain) and $Y : T \to Q^q$ (range) defined on $n$ -dimensional surfaces $S$ and $T$ embedded in an $(n+1)$ -dimensional domain. Each of the symbols $K$ and $Q$ can stand either for the set of real or complex numbers. The surfaces $S$ and $T$ may be equal.

The function assembleWeakForm() can be used to construct the weak form of the operator.

Template Parameters

BasisFunctionType_	Type of the values of the (components of the) basis functions into which functions acted upon by the operator are expanded.
ResultType_	Type used to represent elements of the weak form of the operator.

Both template parameters can take the following values: float, double, std::complex<float> and std::complex<double>. Both types must have the same precision: for instance, mixing float with std::complex<double> is not allowed. If BasisFunctionType_ is set to a complex type, then ResultType_ must be set to the same type.

Constructor & Destructor Documentation

template<typename BasisFunctionType , typename ResultType >

Bempp::AbstractBoundaryOperator< BasisFunctionType, ResultType >::AbstractBoundaryOperator	(	const shared_ptr< const Space< BasisFunctionType > > &	domain,
		const shared_ptr< const Space< BasisFunctionType > > &	range,
		const shared_ptr< const Space< BasisFunctionType > > &	dualToRange,
		const std::string &	label,
		int	symmetry
	)

Constructor.

Parameters

[in]	domain	Function space being the domain of the operator.
[in]	range	Function space being the range of the operator.
[in]	dualToRange	Function space dual to the the range of the operator.
[in]	label	Textual label of the operator. If empty, a unique label is generated automatically.
[in]	symmetry	Symmetry of the weak form of the operator. Can be any combination of the flags defined in the enumeration type Symmetry.

None of the shared pointers may be null and the spaces range and dualToRange must be defined on the same grid, otherwise an exception is thrown.

References Bempp::AbstractBoundaryOperator< BasisFunctionType_, ResultType_ >::uniqueLabel().

Member Function Documentation

template<typename BasisFunctionType, typename ResultType>

shared_ptr< DiscreteBoundaryOperator< ResultType > > Bempp::AbstractBoundaryOperator< BasisFunctionType, ResultType >::assembleWeakForm ( const Context< BasisFunctionType, ResultType > & context ) const

Assemble and return the operator's weak form.

This function constructs a discrete linear operator representing the matrix $L_{jk}$ with entries of the form

$L_{jk} = \int_S \phi_j L \psi_k \, dS,$

where $L$ is the linear operator represented by this object, $S$ denotes the surface on which the domain function space $X$ is defined and which is represented by the grid returned by domain.grid(), $\phi_j$ is a test function from the space $Y'$ dual to the range of the operator, $Y$ , and $\psi_k$ is a trial function from the domain space $X$ .

Referenced by Bempp::DiscreteBoundaryOperatorCache< BasisFunctionType, ResultType >::getWeakForm(), and Bempp::Context< BasisFunctionType, ResultType >::getWeakForm().

template<typename BasisFunctionType_, typename ResultType_>

virtual shared_ptr<DiscreteBoundaryOperator<ResultType> > Bempp::AbstractBoundaryOperator< BasisFunctionType_, ResultType_ >::assembleWeakFormImpl ( const Context< BasisFunctionType, ResultType > & context ) const

protectedpure virtual

Assemble and return the operator's weak form.

This virtual function is invoked by assembleWeakForm() to do the actual work.

template<typename BasisFunctionType , typename ResultType >

shared_ptr< const Space< BasisFunctionType > > Bempp::AbstractBoundaryOperator< BasisFunctionType, ResultType >::domain ( ) const

Domain.

Return a shared pointer to the function space being the domain of this operator.

template<typename BasisFunctionType , typename ResultType >

shared_ptr< const Space< BasisFunctionType > > Bempp::AbstractBoundaryOperator< BasisFunctionType, ResultType >::dualToRange ( ) const

Dual to range.

Return a shared pointer to the function space dual to the range of this operator.

template<typename BasisFunctionType , typename ResultType >

shared_ptr< const AbstractBoundaryOperatorId > Bempp::AbstractBoundaryOperator< BasisFunctionType, ResultType >::id ( ) const

virtual

Return the identifier of this operator.

If the weak form of this operator is cacheable, return a shared pointer to a valid instance of a subclass of AbstractBoundaryOperatorId that is guaranteed to be different for all logically different abstract boundary operators.

If the weak form of this operator is not cacheable, return a null shared pointer. This is the default implementation.

Deprecated:: This method is deprecated and will be removed in a future version of BEM++. Boundary operator identifiers are no longer used by the discrete weak-form caching mechanism.

Reimplemented in Bempp::IdentityOperator< BasisFunctionType_, ResultType_ >, Bempp::NullOperator< BasisFunctionType_, ResultType_ >, and Bempp::AbstractBoundaryOperatorPseudoinverse< BasisFunctionType_, ResultType_ >.

Referenced by Bempp::DiscreteBoundaryOperatorCache< BasisFunctionType, ResultType >::getWeakForm().

template<typename BasisFunctionType_, typename ResultType_>

virtual bool Bempp::AbstractBoundaryOperator< BasisFunctionType_, ResultType_ >::isLocal ( ) const

pure virtual

Return whether this operator is local.

Suppose that an operator $A$ acting on a function $f(x)$ produces another function $g(x)$ . We say that $A$ is local if the value of $g$ at any point $x$ depends only on the values of $f$ in an infinitesimal neighbourhood of $x$ .

Multiplicative and differential operators are local and discretization of their weak forms with finite elements leads to sparse matrices. Conversely, integral operators are in general non-local and discretization of their weak forms leads to dense matrices.

template<typename BasisFunctionType , typename ResultType >

shared_ptr< const Space< BasisFunctionType > > Bempp::AbstractBoundaryOperator< BasisFunctionType, ResultType >::range ( ) const

Range.

Return a shared pointer to the function space being the range of this operator.

template<typename BasisFunctionType , typename ResultType >

int Bempp::AbstractBoundaryOperator< BasisFunctionType, ResultType >::symmetry ( ) const

Return the symmetry properties of the operator.

The returned value should be treated as a bitwise combination of the flags defined in the Symmetry enumeration type.

The documentation for this class was generated from the following files:

/home/wojtek/Projects/BEM/bempp-sven/bempp/lib/assembly/abstract_boundary_operator.hpp
/home/wojtek/Projects/BEM/bempp-sven/bempp/lib/assembly/abstract_boundary_operator.cpp
