Elementary integral boundary operator. More...

#include </home/wojtek/Projects/BEM/bempp-sven/bempp/lib/assembly/elementary_integral_operator.hpp>

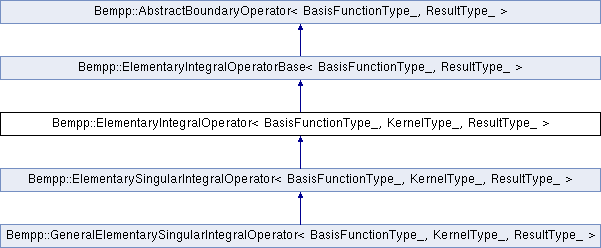

Inheritance diagram for Bempp::ElementaryIntegralOperator< BasisFunctionType_, KernelType_, ResultType_ >:

Public Types
typedef Base::BasisFunctionType	BasisFunctionType
	Type of the values of the (components of the) basis functions into which functions acted upon by the operator are expanded. More...

typedef Base::ResultType	ResultType
	Type used to represent elements of the weak form of the operator. More...

typedef Base::CoordinateType	CoordinateType
	Type used to represent coordinates. More...

typedef Base::QuadratureStrategy	QuadratureStrategy
	Type of the appropriate instantiation of Fiber::QuadratureStrategy. More...

typedef Base::LocalAssembler	LocalAssembler
	Type of the appropriate instantiation of Fiber::LocalAssemblerForOperators. More...

typedef KernelType_	KernelType
	Type of the values of the (components of the) kernel functions.

typedef Fiber::CollectionOfShapesetTransformations < CoordinateType >	CollectionOfShapesetTransformations
	Type of the appropriate instantiation of Fiber::CollectionOfShapesetTransformations.

typedef Fiber::CollectionOfShapesetTransformations < CoordinateType >	CollectionOfBasisTransformations
	Type of the appropriate instantiation of Fiber::CollectionOfBasisTransformations. More...

typedef Fiber::CollectionOfKernels < KernelType >	CollectionOfKernels
	Type of the appropriate instantiation of Fiber::CollectionOfKernels.

typedef Fiber::TestKernelTrialIntegral < BasisFunctionType, KernelType, ResultType >	TestKernelTrialIntegral
	Type of the appropriate instantiation of Fiber::TestKernelTrialIntegral.

Public Types inherited from Bempp::ElementaryIntegralOperatorBase< BasisFunctionType_, ResultType_ >
typedef Base::BasisFunctionType	BasisFunctionType
	Type of the values of the (components of the) basis functions into which functions acted upon by the operator are expanded. More...

typedef Base::ResultType	ResultType
	Type used to represent elements of the weak form of the operator. More...

typedef Base::CoordinateType	CoordinateType
	Type used to represent coordinates. More...

typedef Base::QuadratureStrategy	QuadratureStrategy
	Type of the appropriate instantiation of Fiber::QuadratureStrategy. More...

typedef Fiber::LocalAssemblerForIntegralOperators < ResultType >	LocalAssembler
	Type of the appropriate instantiation of Fiber::LocalAssemblerForOperators.

Public Types inherited from Bempp::AbstractBoundaryOperator< BasisFunctionType_, ResultType_ >
typedef BasisFunctionType_	BasisFunctionType
	Type of the values of the (components of the) basis functions into which functions acted upon by the operator are expanded.

typedef ResultType_	ResultType
	Type used to represent elements of the weak form of the operator.

typedef ScalarTraits < ResultType >::RealType	CoordinateType
	Type used to represent coordinates.

typedef Fiber::QuadratureStrategy < BasisFunctionType, ResultType, GeometryFactory >	QuadratureStrategy
	Type of the appropriate instantiation of Fiber::QuadratureStrategy.

Public Member Functions
	ElementaryIntegralOperator (const shared_ptr< const Space< BasisFunctionType > > &domain, const shared_ptr< const Space< BasisFunctionType > > &range, const shared_ptr< const Space< BasisFunctionType > > &dualToRange, const std::string &label, int symmetry)
	Constructor. More...

virtual bool	isLocal () const
	Return false.

virtual bool	isRegular () const =0
	Return whether applying this operator to a regular function yields a regular integral.

Public Member Functions inherited from Bempp::ElementaryIntegralOperatorBase< BasisFunctionType_, ResultType_ >
	ElementaryIntegralOperatorBase (const shared_ptr< const Space< BasisFunctionType > > &domain, const shared_ptr< const Space< BasisFunctionType > > &range, const shared_ptr< const Space< BasisFunctionType > > &dualToRange, const std::string &label, int symmetry)
	Constructor. More...

	~ElementaryIntegralOperatorBase ()
	Destructor.

std::auto_ptr< LocalAssembler >	makeAssembler (const QuadratureStrategy &quadStrategy, const shared_ptr< const GeometryFactory > &testGeometryFactory, const shared_ptr< const GeometryFactory > &trialGeometryFactory, const shared_ptr< const Fiber::RawGridGeometry< CoordinateType > > &testRawGeometry, const shared_ptr< const Fiber::RawGridGeometry< CoordinateType > > &trialRawGeometry, const shared_ptr< const std::vector< const Fiber::Shapeset< BasisFunctionType > * > > &testShapesets, const shared_ptr< const std::vector< const Fiber::Shapeset< BasisFunctionType > * > > &trialShapesets, const shared_ptr< const Fiber::OpenClHandler > &openClHandler, const ParallelizationOptions &parallelizationOptions, VerbosityLevel::Level verbosityLevel, bool cacheSingularIntegrals) const
	Construct a local assembler suitable for this operator. More...

std::auto_ptr< LocalAssembler >	makeAssembler (const QuadratureStrategy &quadStrategy, const AssemblyOptions &options) const
	Construct a local assembler suitable for this operator using a specified quadrature strategy. More...

shared_ptr < DiscreteBoundaryOperator < ResultType_ > >	assembleWeakFormInternal (LocalAssembler &assembler, const Context< BasisFunctionType, ResultType > &context) const
	Assemble the operator's weak form using a specified local assembler. More...

Public Member Functions inherited from Bempp::AbstractBoundaryOperator< BasisFunctionType_, ResultType_ >
	AbstractBoundaryOperator (const shared_ptr< const Space< BasisFunctionType > > &domain, const shared_ptr< const Space< BasisFunctionType > > &range, const shared_ptr< const Space< BasisFunctionType > > &dualToRange, const std::string &label, int symmetry)
	Constructor. More...

virtual	~AbstractBoundaryOperator ()
	Destructor.

virtual BEMPP_DEPRECATED shared_ptr< const AbstractBoundaryOperatorId >	id () const
	Return the identifier of this operator. More...

shared_ptr< const Space < BasisFunctionType > >	domain () const
	Domain. More...

shared_ptr< const Space < BasisFunctionType > >	range () const
	Range. More...

shared_ptr< const Space < BasisFunctionType > >	dualToRange () const
	Dual to range. More...

std::string	label () const
	Return the label of the operator.

int	symmetry () const
	Return the symmetry properties of the operator. More...

shared_ptr < DiscreteBoundaryOperator < ResultType_ > >	assembleWeakForm (const Context< BasisFunctionType_, ResultType_ > &context) const
	Assemble and return the operator's weak form. More...

Protected Member Functions
virtual shared_ptr < DiscreteBoundaryOperator < ResultType_ > >	assembleWeakFormImpl (const Context< BasisFunctionType, ResultType > &context) const
	Assemble and return the operator's weak form. More...

Protected Member Functions inherited from Bempp::AbstractBoundaryOperator< BasisFunctionType_, ResultType_ >
void	collectDataForAssemblerConstruction (const AssemblyOptions &options, shared_ptr< Fiber::RawGridGeometry< CoordinateType > > &testRawGeometry, shared_ptr< Fiber::RawGridGeometry< CoordinateType > > &trialRawGeometry, shared_ptr< GeometryFactory > &testGeometryFactory, shared_ptr< GeometryFactory > &trialGeometryFactory, shared_ptr< std::vector< const Fiber::Shapeset< BasisFunctionType_ > * > > &testShapesets, shared_ptr< std::vector< const Fiber::Shapeset< BasisFunctionType_ > * > > &trialShapesets, shared_ptr< Fiber::OpenClHandler > &openClHandler, bool &cacheSingularIntegrals) const
	Given an AssemblyOptions object, construct objects necessary for subsequent local assembler construction.

void	collectOptionsIndependentDataForAssemblerConstruction (shared_ptr< Fiber::RawGridGeometry< CoordinateType > > &testRawGeometry, shared_ptr< Fiber::RawGridGeometry< CoordinateType > > &trialRawGeometry, shared_ptr< GeometryFactory > &testGeometryFactory, shared_ptr< GeometryFactory > &trialGeometryFactory, shared_ptr< std::vector< const Fiber::Shapeset< BasisFunctionType_ > * > > &testShapesets, shared_ptr< std::vector< const Fiber::Shapeset< BasisFunctionType_ > * > > &trialShapesets) const
	Construct those objects necessary for subsequent local assembler construction that are independent from assembly options.

void	collectOptionsDependentDataForAssemblerConstruction (const AssemblyOptions &options, const shared_ptr< Fiber::RawGridGeometry< CoordinateType > > &testRawGeometry, const shared_ptr< Fiber::RawGridGeometry< CoordinateType > > &trialRawGeometry, shared_ptr< Fiber::OpenClHandler > &openClHandler, bool &cacheSingularIntegrals) const
	Construct those objects necessary for subsequent local assembler construction that depend on assembly options.

Private Types
typedef ElementaryIntegralOperatorBase < BasisFunctionType_, ResultType_ >	Base

Private Member Functions
virtual const CollectionOfKernels &	kernels () const =0
	Return the collection of kernel functions occurring in the weak form of this operator.

virtual const CollectionOfShapesetTransformations &	testTransformations () const =0
	Return the collection of test function transformations occurring in the weak form of this operator.

virtual const CollectionOfShapesetTransformations &	trialTransformations () const =0
	Return the collection of trial function transformations occurring in the weak form of this operator.

virtual const TestKernelTrialIntegral &	integral () const =0
	Return an object representing the integral that is the weak form of this operator. More...

virtual std::auto_ptr < LocalAssembler >	makeAssemblerImpl (const QuadratureStrategy &quadStrategy, const shared_ptr< const GeometryFactory > &testGeometryFactory, const shared_ptr< const GeometryFactory > &trialGeometryFactory, const shared_ptr< const Fiber::RawGridGeometry< CoordinateType > > &testRawGeometry, const shared_ptr< const Fiber::RawGridGeometry< CoordinateType > > &trialRawGeometry, const shared_ptr< const std::vector< const Fiber::Shapeset< BasisFunctionType > * > > &testShapesets, const shared_ptr< const std::vector< const Fiber::Shapeset< BasisFunctionType > * > > &trialShapesets, const shared_ptr< const Fiber::OpenClHandler > &openClHandler, const ParallelizationOptions &parallelizationOptions, VerbosityLevel::Level verbosityLevel, bool cacheSingularIntegrals) const
	Construct a local assembler suitable for this operator. More...

virtual shared_ptr < DiscreteBoundaryOperator < ResultType_ > >	assembleWeakFormInternalImpl2 (LocalAssembler &assembler, const Context< BasisFunctionType, ResultType > &context) const
	Assemble the operator's weak form using a specified local assembler. More...

Detailed Description

template<typename BasisFunctionType_, typename KernelType_, typename ResultType_>
class Bempp::ElementaryIntegralOperator< BasisFunctionType_, KernelType_, ResultType_ >

Elementary integral boundary operator.

This class represents an integral boundary operator $\mathcal A$ whose weak form is

$\langle \phi, \mathcal A \psi \rangle \equiv \int_\Gamma \int_\Gamma F[\phi(x), \psi(y)] \, d\Gamma(x) \, d\Gamma(y),$

where $\Gamma$ is a surface embedded in a space of dimension higher by one and the integrand $F[\phi(x), \psi(y)]$ is an arbitrary bilinear (or sesquilinear) form of the test function $\phi$ belonging to the space dual to the range of $\mathcal A$ and the trial function $\psi$ belonging to the domain of $\mathcal A$ . In the simplest and most common case, $F[\phi(x), \psi(y)]$ is just

$F[\phi(x), \psi(y)] = \phi^*(x) K(x, y) \psi(y),$

where $K(x, y)$ is a kernel function and the asterisk denotes complex conjugation. For more complex operators, $F$ might involve some transformations of the test and trial functions (e.g. their surface divergence or curl), the kernel function might be a tensor, or $F$ might consist of several terms. The exact form of $F$ for a particular boundary operator is determined by the implementation of the virtual functions integral(), kernels(), testTransformations() and trialTransformations().

Template Parameters

BasisFunctionType_	Type of the values of the (components of the) basis functions into which functions acted upon by the operator are expanded.
KernelType_	Type of the values of the (components of the) kernel functions occurring in the integrand of the operator.
ResultType_	Type used to represent elements of the weak form of the operator.

All three template parameters can take the following values: float, double, std::complex<float> and std::complex<double>. All types must have the same precision: for instance, mixing float with std::complex<double> is not allowed. If either BasisFunctionType_ or KernelType_ is a complex type, then ResultType_ must be set to the same type.

Member Typedef Documentation

template<typename BasisFunctionType_, typename KernelType_, typename ResultType_>

typedef Base::BasisFunctionType Bempp::ElementaryIntegralOperator< BasisFunctionType_, KernelType_, ResultType_ >::BasisFunctionType

Type of the values of the (components of the) basis functions into which functions acted upon by the operator are expanded.

template<typename BasisFunctionType_, typename KernelType_, typename ResultType_>

typedef Fiber::CollectionOfShapesetTransformations<CoordinateType> Bempp::ElementaryIntegralOperator< BasisFunctionType_, KernelType_, ResultType_ >::CollectionOfBasisTransformations

Type of the appropriate instantiation of Fiber::CollectionOfBasisTransformations.

Deprecated:: This type is deprecated; use CollectionOfShapesetTransformations instead.

template<typename BasisFunctionType_, typename KernelType_, typename ResultType_>

typedef Base::CoordinateType Bempp::ElementaryIntegralOperator< BasisFunctionType_, KernelType_, ResultType_ >::CoordinateType

Type used to represent coordinates.

template<typename BasisFunctionType_, typename KernelType_, typename ResultType_>

typedef Base::LocalAssembler Bempp::ElementaryIntegralOperator< BasisFunctionType_, KernelType_, ResultType_ >::LocalAssembler

Type of the appropriate instantiation of Fiber::LocalAssemblerForOperators.

template<typename BasisFunctionType_, typename KernelType_, typename ResultType_>

typedef Base::QuadratureStrategy Bempp::ElementaryIntegralOperator< BasisFunctionType_, KernelType_, ResultType_ >::QuadratureStrategy

Type of the appropriate instantiation of Fiber::QuadratureStrategy.

template<typename BasisFunctionType_, typename KernelType_, typename ResultType_>

typedef Base::ResultType Bempp::ElementaryIntegralOperator< BasisFunctionType_, KernelType_, ResultType_ >::ResultType

Type used to represent elements of the weak form of the operator.

Constructor & Destructor Documentation

template<typename BasisFunctionType , typename KernelType , typename ResultType >

Bempp::ElementaryIntegralOperator< BasisFunctionType, KernelType, ResultType >::ElementaryIntegralOperator	(	const shared_ptr< const Space< BasisFunctionType > > &	domain,
		const shared_ptr< const Space< BasisFunctionType > > &	range,
		const shared_ptr< const Space< BasisFunctionType > > &	dualToRange,
		const std::string &	label,
		int	symmetry
	)

Constructor.

Parameters

[in]	domain	Function space being the domain of the operator.
[in]	range	Function space being the range of the operator.
[in]	dualToRange	Function space dual to the the range of the operator.
[in]	label	Textual label of the operator. If empty, a unique label is generated automatically.
[in]	symmetry	Symmetry of the weak form of the operator. Can be any combination of the flags defined in the enumeration type Symmetry.

None of the shared pointers may be null and the spaces range and dualToRange must be defined on the same grid, otherwise an exception is thrown.

Member Function Documentation

template<typename BasisFunctionType , typename KernelType , typename ResultType >

shared_ptr< DiscreteBoundaryOperator< ResultType > > Bempp::ElementaryIntegralOperator< BasisFunctionType, KernelType, ResultType >::assembleWeakFormImpl ( const Context< BasisFunctionType, ResultType > & context ) const

protectedvirtual

Assemble and return the operator's weak form.

This virtual function is invoked by assembleWeakForm() to do the actual work.

Implements Bempp::AbstractBoundaryOperator< BasisFunctionType_, ResultType_ >.

References Bempp::Context< BasisFunctionType, ResultType >::assemblyOptions(), and Bempp::Context< BasisFunctionType, ResultType >::quadStrategy().

template<typename BasisFunctionType , typename KernelType , typename ResultType >

shared_ptr< DiscreteBoundaryOperator< ResultType > > Bempp::ElementaryIntegralOperator< BasisFunctionType, KernelType, ResultType >::assembleWeakFormInternalImpl2	(	LocalAssembler &	assembler,
		const Context< BasisFunctionType, ResultType > &	options
	)		const

privatevirtual

Assemble the operator's weak form using a specified local assembler.

This virtual function is invoked by assembleWeakFormInternal() to do the actual work.

Implements Bempp::ElementaryIntegralOperatorBase< BasisFunctionType_, ResultType_ >.

References Bempp::Context< BasisFunctionType, ResultType >::assemblyOptions().

template<typename BasisFunctionType_, typename KernelType_, typename ResultType_>

virtual const TestKernelTrialIntegral& Bempp::ElementaryIntegralOperator< BasisFunctionType_, KernelType_, ResultType_ >::integral ( ) const

privatepure virtual

Return an object representing the integral that is the weak form of this operator.

Subclasses of TestKernelTrialIntegral implement functions that evaluate the integral using the data provided by a CollectionOfKernels representing the kernel functions occurring in the integrand and a pair of CollectionOfShapesetTransformations objects representing the test and trial function transformations occurring in the integrand.

Implemented in Bempp::GeneralElementarySingularIntegralOperator< BasisFunctionType_, KernelType_, ResultType_ >.

template<typename BasisFunctionType , typename KernelType , typename ResultType >

std::auto_ptr< typename ElementaryIntegralOperator< BasisFunctionType, KernelType, ResultType >::LocalAssembler > Bempp::ElementaryIntegralOperator< BasisFunctionType, KernelType, ResultType >::makeAssemblerImpl	(	const QuadratureStrategy &	quadStrategy,
		const shared_ptr< const GeometryFactory > &	testGeometryFactory,
		const shared_ptr< const GeometryFactory > &	trialGeometryFactory,
		const shared_ptr< const Fiber::RawGridGeometry< CoordinateType > > &	testRawGeometry,
		const shared_ptr< const Fiber::RawGridGeometry< CoordinateType > > &	trialRawGeometry,
		const shared_ptr< const std::vector< const Fiber::Shapeset< BasisFunctionType > * > > &	testShapesets,
		const shared_ptr< const std::vector< const Fiber::Shapeset< BasisFunctionType > * > > &	trialShapesets,
		const shared_ptr< const Fiber::OpenClHandler > &	openClHandler,
		const ParallelizationOptions &	parallelizationOptions,
		VerbosityLevel::Level	verbosityLevel,
		bool	cacheSingularIntegrals
	)		const

privatevirtual

Construct a local assembler suitable for this operator.

This function is invoked by both overloads of makeAssembler() to do the actual work.

Implements Bempp::ElementaryIntegralOperatorBase< BasisFunctionType_, ResultType_ >.

References Fiber::QuadratureStrategy< BasisFunctionType, ResultType, GeometryFactory, Enable >::makeAssemblerForIntegralOperators().

The documentation for this class was generated from the following files:

/home/wojtek/Projects/BEM/bempp-sven/bempp/lib/assembly/elementary_integral_operator.hpp
/home/wojtek/Projects/BEM/bempp-sven/bempp/lib/assembly/elementary_integral_operator.cpp

Public Types

Public Member Functions

Protected Member Functions

Private Types

Private Member Functions

Detailed Description

template<typename BasisFunctionType_, typename KernelType_, typename ResultType_> class Bempp::ElementaryIntegralOperator< BasisFunctionType_, KernelType_, ResultType_ >

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

template<typename BasisFunctionType_, typename KernelType_, typename ResultType_>
class Bempp::ElementaryIntegralOperator< BasisFunctionType_, KernelType_, ResultType_ >
